HP16B/H Screw Locking Hoods and Housings

Description

HP16B/H enclosure options

Choose an M32 top-entry or side-entry hood and a matching HP16B/H bulkhead base. The covered base adds a hinged metal cover for closing the interface when the cable hood is removed. Screw locking secures the selected mating assembly.

Materials and operating conditions

PropertySpecification
Housing materialDie-cast aluminium
Hinged cover materialDie-cast aluminium
Finish and colourPowder coated, RAL 9005 black
Locking methodScrew locking
Locking element materialStainless steel
Housing sealNBR
Limiting temperature-40°C to +125°C
FlammabilityUL 94 V0 for applicable non-metallic components
ProtectionIP68/IP69K when correctly sealed, coupled and screw-locked

Model selection

ModelConfigurationEntryDimensioned body height
HP16B/H-ST-2HPlain bulkhead baseBottom panel passage29mm

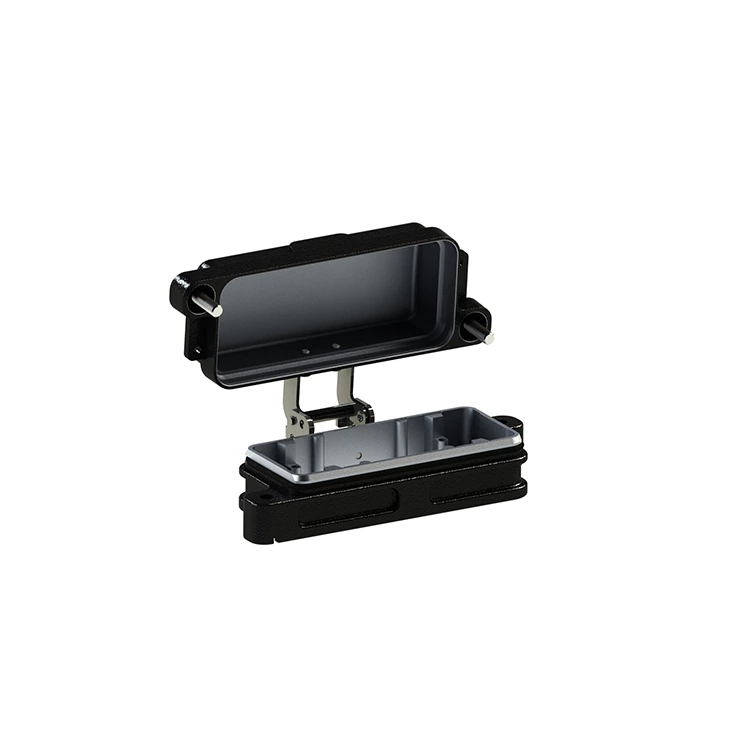

HP16B/H-MCV-ST-2HBulkhead base with hinged metal cover; drawing designation HP16B/H-ST-MCV-2HBottom panel passage28.90mm base, 51.50mm with cover closed
HP16B/H-TKH-2S-M32Top-entry hood with two M6 locking screwsOne M32 top entry111mm
HP16B/H-SKH-2S-M32Side-entry hood with two M6 locking screwsOne M32 side entry111mm

Mounting dimensions

FeatureSpecification
Bulkhead base outline166×58mm
Panel cutout82×35mm
Panel mounting-hole centres103×32mm
Panel mounting holesFour 6.50mm holes
Hood flange165×58mm
Hood locking-position spacing146mm longitudinally and 39mm transversely
Covered base, cover open107mm overall height and 108.50mm overall depth

Hood heights exclude projecting screw shanks. Base and hood outlines have their own dimensions. Preserve the panel opening and hole pattern shown in the base drawing, and allow the full hinge travel on the covered version.

Assembly planning

Match the cable gland to the M32 thread and cable diameter. Check space for cable bends, screw access and the selected insert. Seat the NBR seal evenly before tightening the locking screws. The insert determines the electrical ratings and contact count.
