HP10B/H screw-locking enclosures combine cable hoods with bulkhead bases. Select a top-entry or side-entry hood and a plain base or a base with a hinged metal cover. Match the insert, cable thread and sealing interface for the assembled connector.
| Property | Specification |
|---|---|
| Housing material | Die-cast aluminium |
| Colour | Black; RAL 9005 on the bulkhead bases and M32 side-entry configuration |
| Locking method | Screw locking |
| Locking element material | Stainless steel |
| Seal | NBR |
| Limiting temperature | -40°C to +125°C |
| Flammability | UL 94 V0 for applicable non-metallic components |
| Ingress protection | IP68 according to EN 60529 for the correctly sealed, coupled and screw-locked assembly |
| Additional protection designation | IP69K for ST-2H and ST-MCV-2H bases and the M32 side-entry hood configuration when correctly assembled |
| Model | Configuration | Cable route | Drawing designation |
|---|---|---|---|
| HP10B/H-ST-2H | Plain bulkhead base | Through panel | HP10B/H-ST-2H |

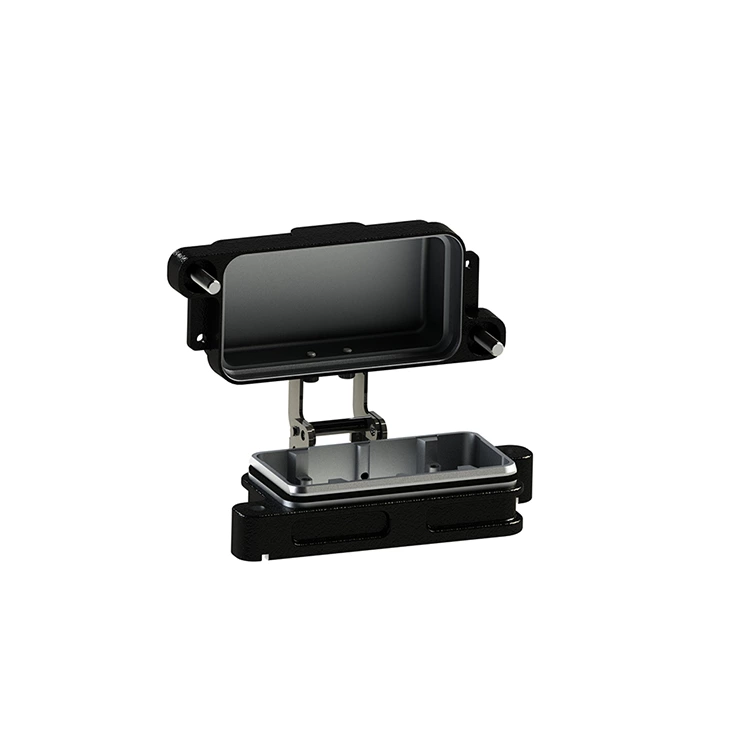

| HP10B/H-ST-MCV-2H | Bulkhead base with hinged aluminium cover | Through panel | HP10B/H-ST-MCV-2H |
| HP10B/H-SKH-2S-PG21 | Side-entry hood | One PG21 entry; M32 configuration also available | HP10B/H-SKH-2S-M32 |
| HP10B/H-TKH-2S-M32 | Top-entry hood | One M32 entry | — |
| Feature | Specification |
|---|---|
| Plain base outline | 146×58mm |
| Plain base height | 29mm |
| Panel cutout, both bases | 60×35mm |
| Mounting-hole centres, both bases | 83×32mm |
| Mounting holes, both bases | Four 6.50mm holes |
| Covered base, closed | 146mm overall length, 90mm depth including the hinge structure, 51.40mm overall height |
| Finish, both bases | Powder coated |
The M32 side-entry configuration has a 146×58mm flange, 101mm body height and two M6 locking screws. Their projected spacing is 126mm longitudinally and 39mm transversely. Its aluminium body is powder coated in RAL 9005 black. Use this drawing for the M32 configuration and select the actual cable gland thread accordingly.
Allow clearance for the cable gland, wiring and screw access. The covered base also requires room for the full hinge travel. Fit the selected insert and close the mating enclosure evenly on its seal. Contact count and electrical ratings depend on the insert.
