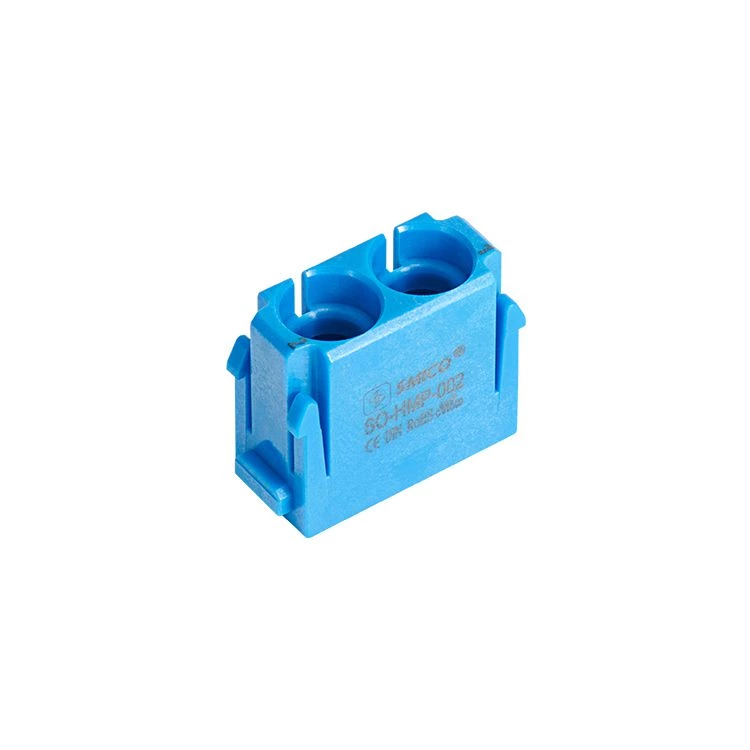

HMP modules hold plastic pneumatic contacts within a modular connector assembly. Choose the two-position HMP-002 for larger tube connections or the three-position HMP-003 for the smaller tube options listed below.
| Model | Pneumatic positions | Metric tube internal diameters | Inch tube options |
|---|---|---|---|
| SO-HMP-002 | 2 | 6.0mm | 1/4inch |
| SO-HMP-003 | 3 | 1.6mm, 3.0mm and 4.0mm | 1/16inch and 1/8inch |
Metric and inch tube designations are separate nominal selections. Match the actual tube and contact dimensions when choosing the connection.
| Property | Specification |
|---|---|
| Outline dimensions | 34.2mm × 14.6mm × 27.2mm |
| Material | Polycarbonate |
| Colour | RAL 5012 blue |
| Temperature range | -40°C to +80°C |
| Flammability according to UL 94 | V0 |
| Mechanical life | ≥500 mating cycles |
| Property | Specification |
|---|---|
| Contact material | Delrin acetal |
| Contact colour | Black |
| Working pressure | Up to 8bar / 116psi |
| Seal material | FPM fluoroelastomer |
| Shut-off valve material, where fitted | Polypropylene |
The pneumatic contacts provide the air passage and sealing function. Select the male, female or valve-equipped contact arrangement for each circuit.
