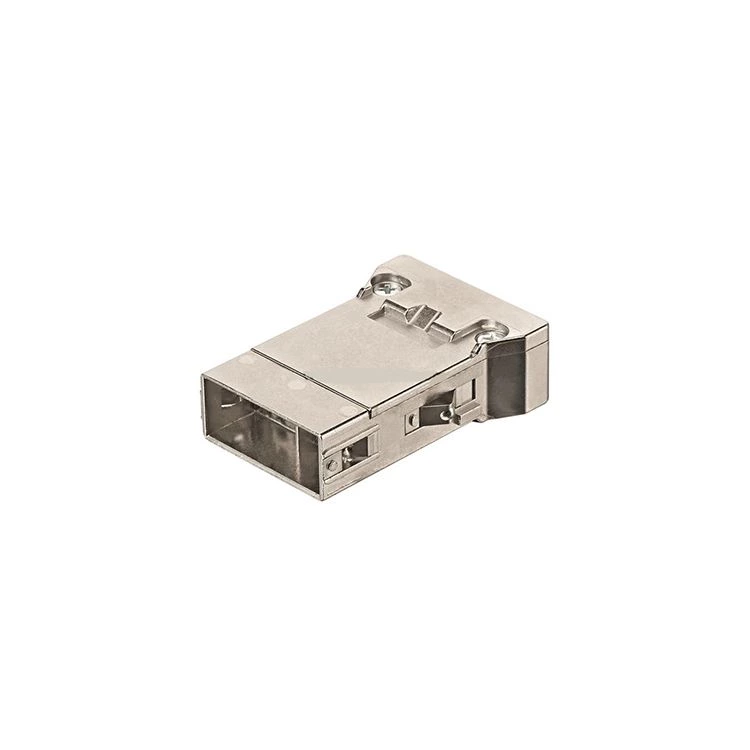

HMMB-008 modules combine two groups of four crimp contacts with a shielding structure. The male and female versions use a polycarbonate insert inside a passivated zinc-alloy outer conductor.
Module options
| Model | Gender | Contact arrangement | Outline dimensions |
|---|
| SO-HMMB-008-MC | Male | 2 × 4 contacts + shielding | 46.5mm × 32.4mm × 14mm |
| SO-HMMB-008-FC | Female | 2 × 4 contacts + shielding | 45.5mm × 32.4mm × 14.1mm |
Use the corresponding drawing to check the mating-end dimensions, clamp screws and side retaining features.
Electrical and connection data
| Property | Specification |
|---|
| Electrical data standard | EN 61984 |
|---|
| Rated current | 10A |
|---|
| Rated voltage | 50V |
|---|
| Rated impulse voltage | 0.8kV |
|---|
| Pollution degree | 3 |
|---|
| Termination | Crimp |
|---|
| Contact resistance | ≤4mΩ |
|---|
| Clamping range | 5-12mm |
|---|
Materials and operating limits
| Property | Specification |
|---|
| Insert material | Polycarbonate |
|---|
| Outer conductor material | Zinc alloy |
|---|
| Outer conductor surface | Passivated |
|---|
| Temperature range | -40°C to +85°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
