HM USB modules provide a four-contact interface within a modular connector assembly. The F and M versions have different mounting and mating-side shapes, so select the module using its corresponding outline drawing.
Module options
| Model | Module side | Contacts | Outline dimensions |
|---|
| SO-HM-USB-F | Female side | 4 | 49.4mm × 34.2mm × 14.7mm |
| SO-HM-USB-M | Male side | 4 | 52mm × 34.2mm × 14.65mm |

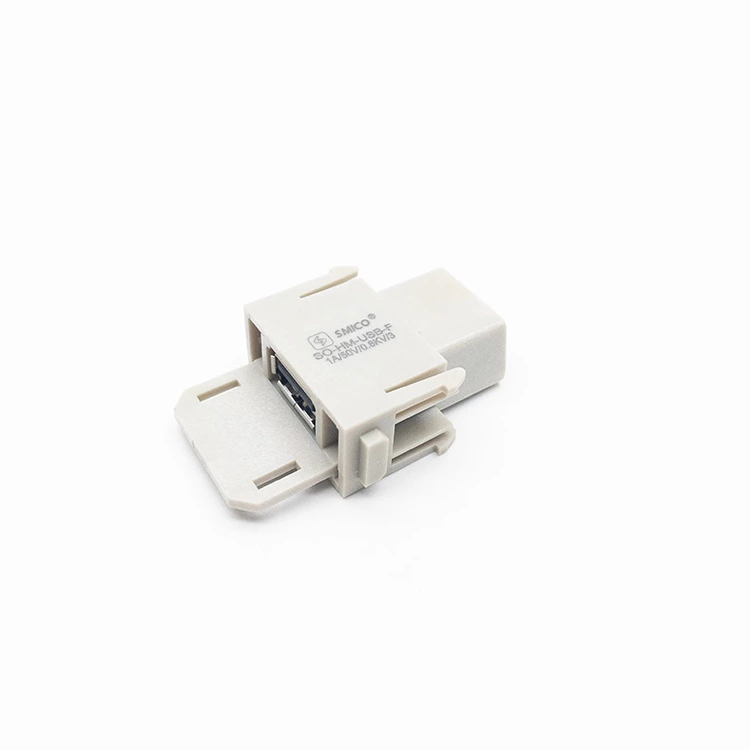

The F module is shown with a USB socket. The M module drawing details its carrier opening and fixing features.
Electrical specifications
| Property | Specification |
|---|
| Electrical data standard | EN 61984 |
|---|
| Rated current | 1A |
|---|
| Rated voltage | 50V |
|---|
| Rated impulse voltage | 0.8kV |
|---|
| Pollution degree | 3 |
|---|
| Rated voltage according to UL | <30V |
|---|
| Insulation resistance | ≥1010Ω |
|---|
Materials and operating limits
| Property | Specification |
|---|
| Module material | Polycarbonate |
|---|
| Temperature range | -40°C to +85°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
