Overview

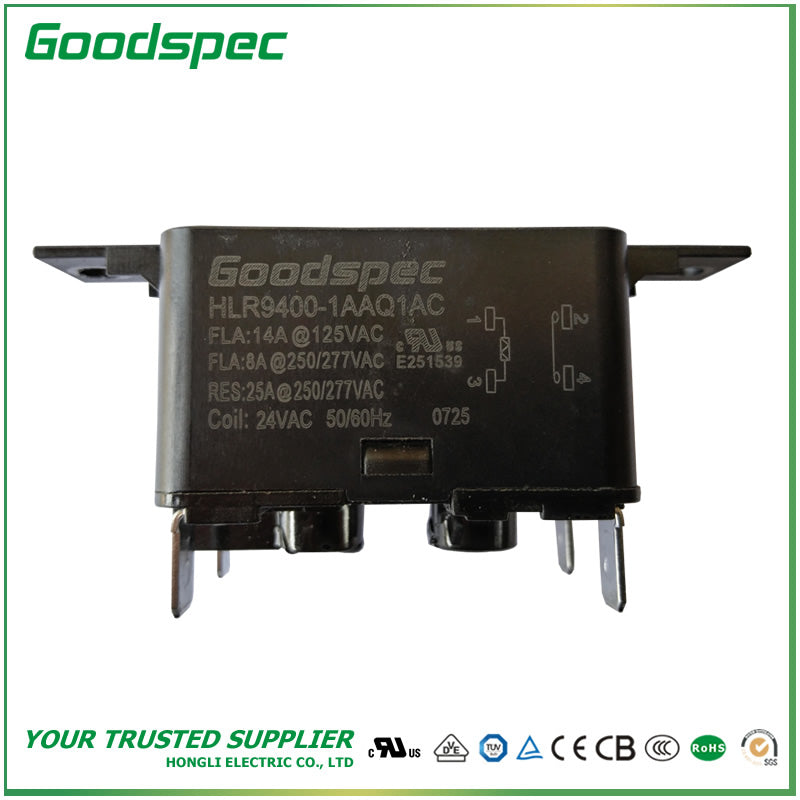

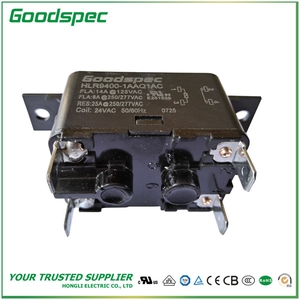

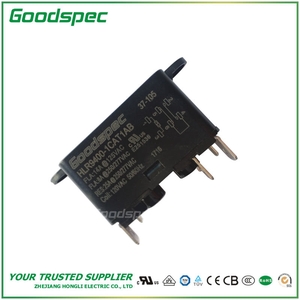

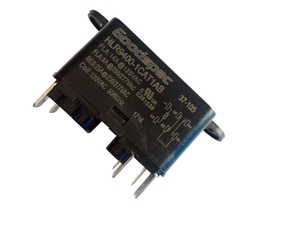

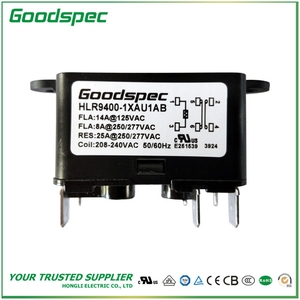

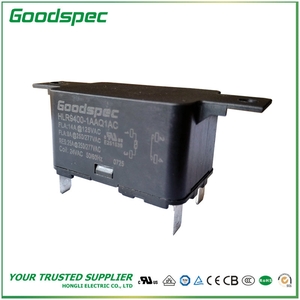

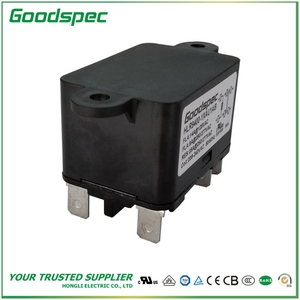

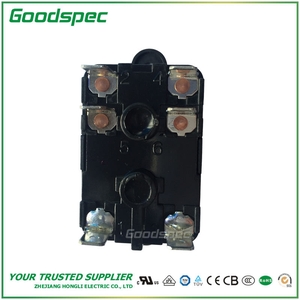

The HLR9400 Series General Purpose Fan Relays are compact yet powerful switching solutions designed for the HVAC industry. Specifically engineered to handle heavier loads in heating and air conditioning equipment, these relays provide reliable performance in a space-saving design.
Key Features
- Heavy Load Capacity: Rated for nominal currents up to 25A, with specific ratings of 14A at 120V and 8A at 277V.
- Versatile Contact Arrangements: Available in SPST-NO, SPDT, and SPDT NO+NC configurations to suit various control requirements.
- Compact Efficiency: Small size allows for easy integration into modern, space-constrained HVAC equipment.
- Global Safety Standards: Engineered to meet rigorous international safety and quality benchmarks.
Technical Specifications
| Parameter |
Specification |
| Current Rating (Amps) |
Up to 25A |
| FLA/LRA @ 125V |
14/60 |
| FLA/LRA @ 250V |
8/48 |
| Coil Voltages (Us) |
24V, 120V, 208/240V, 277V AC; 12V, 24V DC |
Applications
Primarily used in residential and commercial heating, ventilation, and air conditioning (HVAC) systems for fan motor control and other high-load switching tasks.
Standards & Certifications
- Industry Compliance: Conforms to UL508, IEC60947, and GB14048 standards.
- Certified Quality: Approved by UL (File E251539), CUL, TUV, CE, CCC, and RoHS; manufactured in ISO9001 certified facilities.
