HLR72 Mini Power Relays

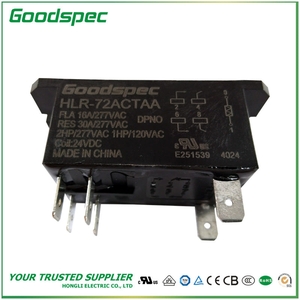

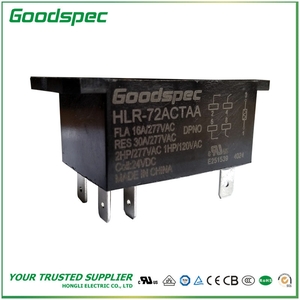

HLR-72ACTAA

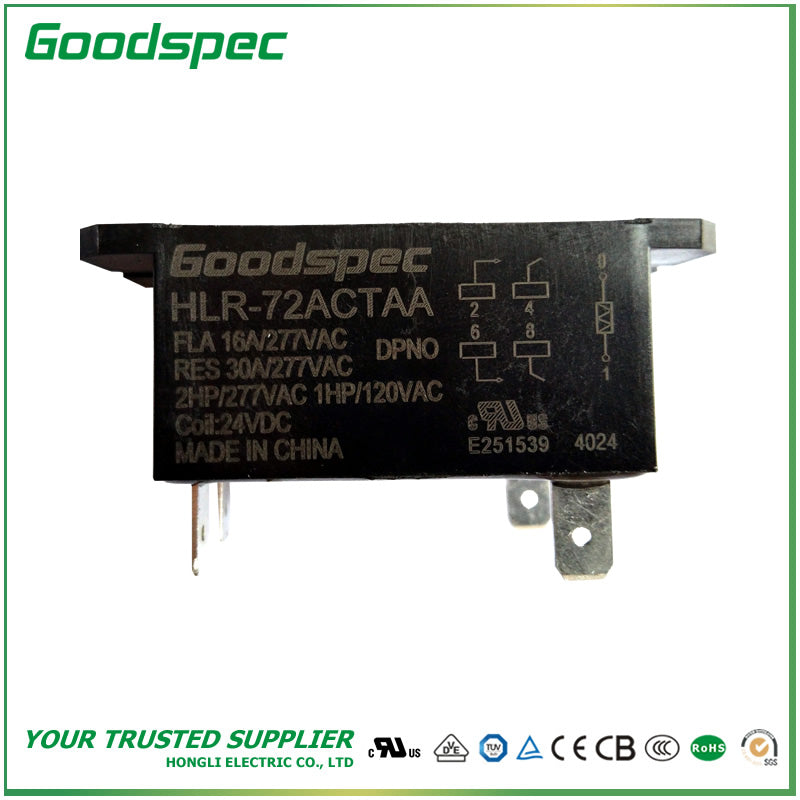

HLR-72ACTAA

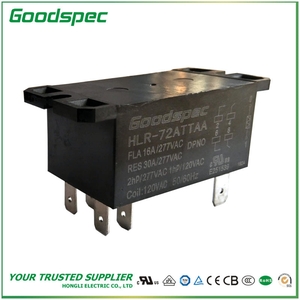

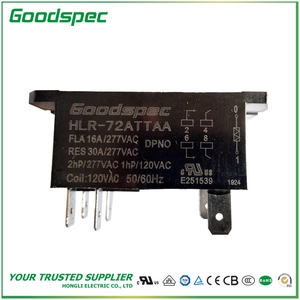

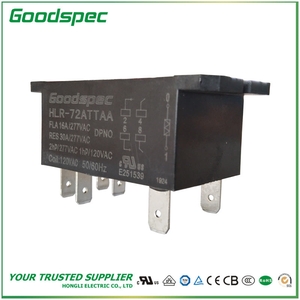

HLR-72ATTAA
HLR-72ATTAA

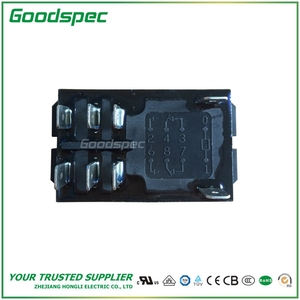

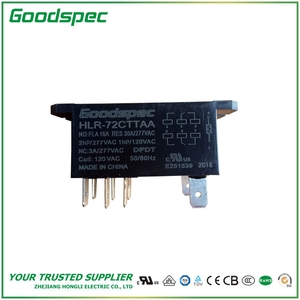

HLR-72CTTAA
HLR-72CTTAA
HLR-72ACTAA
HLR-72ATTAA
HLR-72ACTAA
HLR-72ATTAA

Description

Overview

The HLR72 Series Mini Power Relays are compact, lightweight components designed for high-performance control in single-phase load circuits. With a robust 30A contact load capacity, these relays provide reliable switching for a wide range of industrial and domestic applications.

Key Features

  • High Load Capacity: Nominal current up to 30A (Ith), suitable for heavy-duty switching.
  • Compact & Efficient: Small footprint and lightweight design with low coil power consumption.
  • Enhanced Durability: Mechanical life exceeding 1,000,000 cycles and electrical life over 100,000 cycles.
  • Versatile Mounting: Available with bracket mounting and quick-connect terminals (.250" QC).

Technical Specifications

Parameter Specification
Insulation Voltage (Ui) 600V
Rated Contact Voltage (Ue) AC 277V
Nominal Current (Ie) 30A (Ith) / 16A (AC-8b)
Coil Voltages 12V, 24V, 36V, 48V, 110/120V, 220/240V AC/DC

Applications

Ideal for use in HVAC systems (compressors, heaters), motors, power source controls, office equipment (copiers, fax machines), and food processing machinery.

Standards & Certifications

  • Compliance: Conforms to UL508, IEC60947, and GB14048 standards.
  • Certifications: Approved by UL (File E251539), RoHS, and ISO9001.
