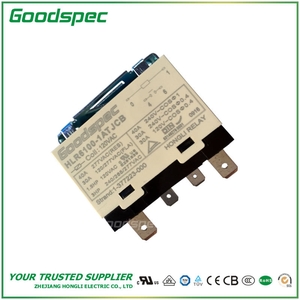

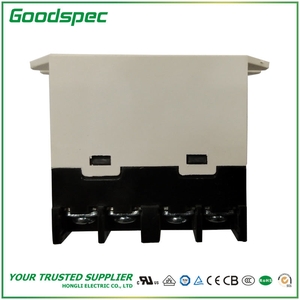

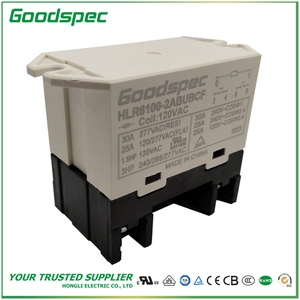

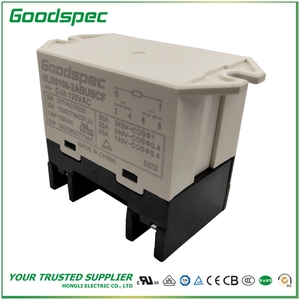

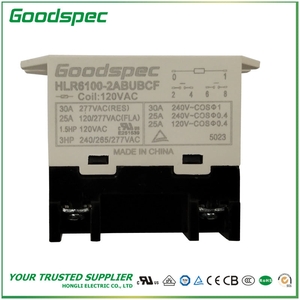

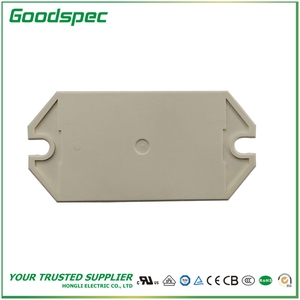

HLR6100 High Power Relays

Overview

The HLR6100 Series High Power Relays are versatile, heavy-duty switching components designed for high-performance control in single-phase load circuits. Engineered with a compact footprint and high contact load capacity, these relays are suitable for a broad spectrum of industrial, commercial, and domestic applications.

Key Features

• High Switching Capacity: Rated for nominal currents up to 30A (Ie) and thermal currents up to 40A (Ith).

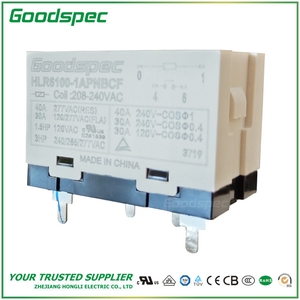

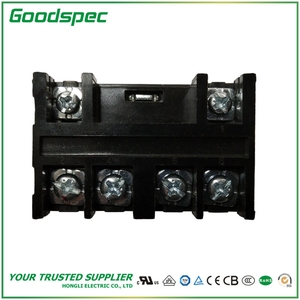

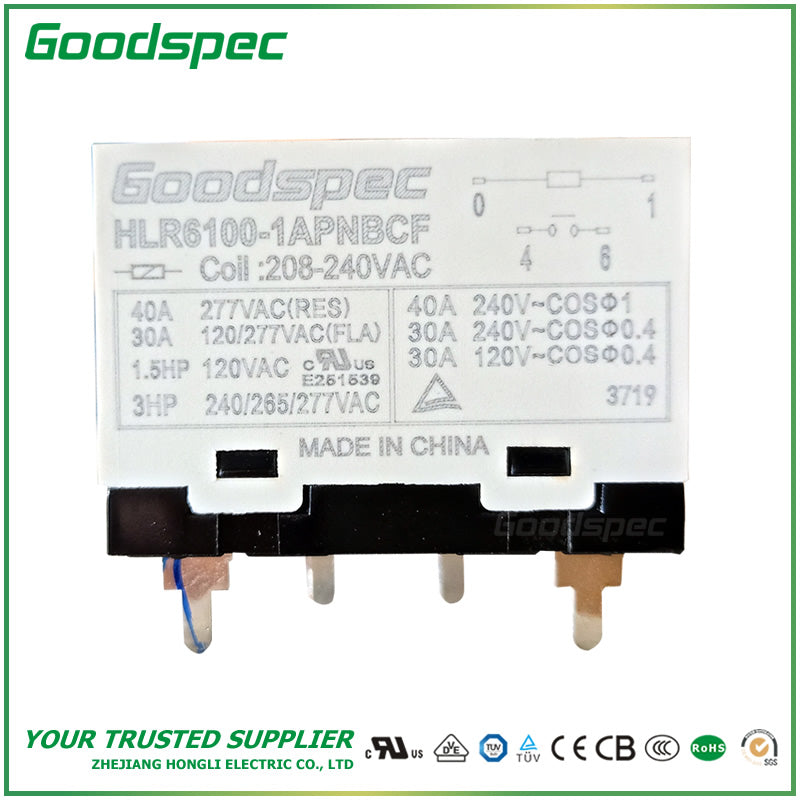

• Versatile Termination: Available with Quick-connect (T), PCB (P), or Screw (B) terminals to meet diverse wiring requirements.
• Class F Insulation: Features high-grade Class F insulation for superior thermal resistance and safety.
• Exceptional Durability: Mechanical life exceeding 10,000,000 cycles and electrical life over 100,000 cycles.

Technical Specifications

Applications

Perfect for use in HVAC compressors, industrial heaters, motor control, office equipment (copiers, fax machines), and food processing machinery where high reliability and compact size are paramount.

Standards & Certifications

• Industry Standards: Conforms to UL508, IEC60947, and GB14048 benchmarks.
• Certified Quality: Approved by UL (File E251539), RoHS, and manufactured under an ISO9001 certified quality system.
