HLR3700 Motor Starting Relays

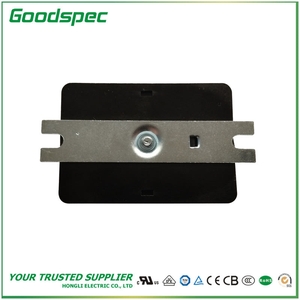

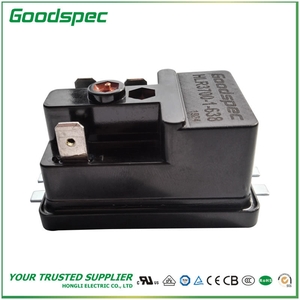

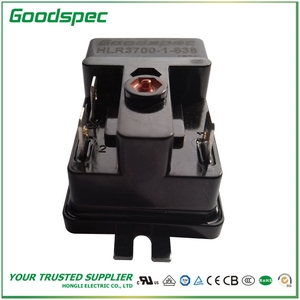

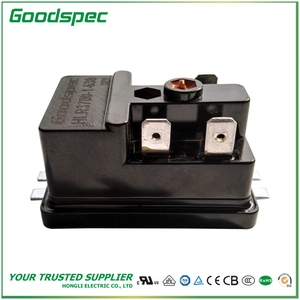

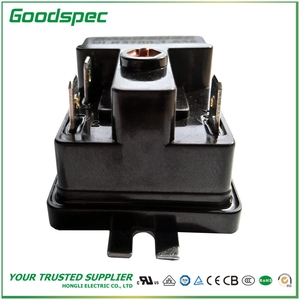

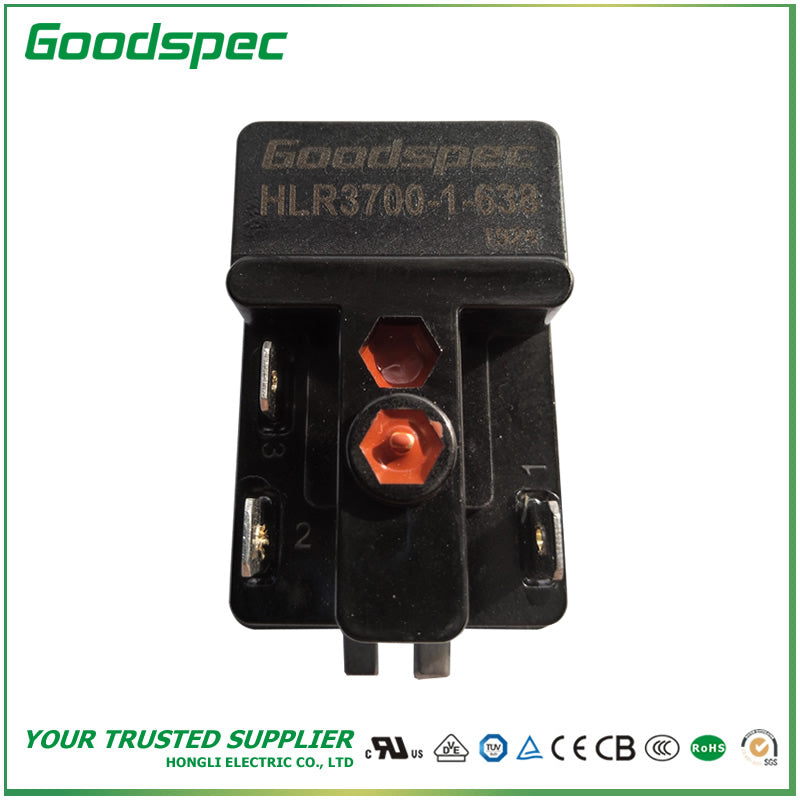

HLR3700-1-638
HLR3700-1-638
HLR3700-1-638
HLR3700-1-638
HLR3700-1-638
HLR3700-1-638

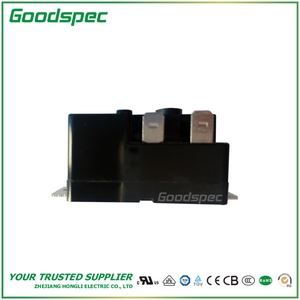

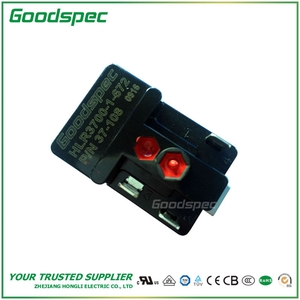

HLR3700-672
HLR3700-672

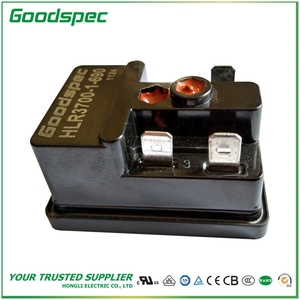

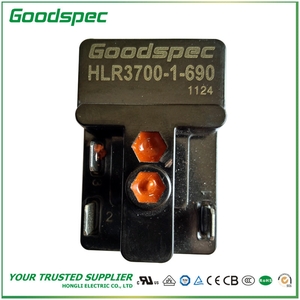

HLR3700-690
HLR3700-690

Description

Overview

The HLR3700 Series Motor Starting Relays are high-capacity, compact components specifically designed for single-phase motor applications. They are ideal for split-phase and capacitor-start motors with start-winding currents up to 25 amperes, offering a reliable alternative to centrifugal switches.

Key Features

  • High Switching Capacity: Rated for start-winding currents up to 25 amps using durable silver cadmium oxide contacts.
  • Universal Mounting: Features a balanced armature for positive operation independent of the mounting position.
  • Compact Design: Small footprint allows for installation in tight spaces, including within the motor or conduit box.
  • Enhanced Conductivity: Double-break bonded Top-lay contacts provide superior electrical and thermal performance.

Technical Specifications

Parameter Specification
Max Start-Winding Current 25 Amps
Contact Material Silver Cadmium Oxide
Mounting Flexibility Independent of position (360° orientation)
Durability High electrical and mechanical cycle life

Operation & Applications

The HLR3700 relay coil connects in series with the motor's main winding. Upon startup, the in-rush current closes the contacts to energize the start winding. As the motor gains speed, the decreasing current allows the contacts to open, disconnecting the start winding. It is widely used in compact equipment where space and reliability are critical.

Key Benefits

  • Reliable operation independent of mounting position.
  • Wide range of pick-up and drop-out ratings.
  • Eliminates the need for internal centrifugal switches.
  • Cost-effective and long-lasting performance.

Performance Parameters (Rating Data)

Rating No. Relay Operating Characteristics (A) Rating No. Relay Operating Characteristics (A) Rating No. Relay Operating Characteristics (A)
Max. Pick-Up Min. Drop-Out Max. Pick-Up Min. Drop-Out Max. Pick-Up Min. Drop-Out
600 1.01 0.83 662 6.30 5.20 724 15.00 12.40
601 1.07 0.88 663 6.40 5.30 725 15.20 12.50
602 1.12 0.93 664 6.50 5.35 726 15.40 12.70
603 1.17 0.97 665 6.60 5.45 727 15.60 12.80
604 1.22 1.01 666 6.70 5.50 728 15.80 13.00
605 1.27 1.06 667 6.80 5.60 729 16.00 13.20
606 1.32 1.10 668 6.90 5.70 730 16.20 13.40
607 1.38 1.13 669 7.00 5.80 731 16.40 13.50
608 1.42 1.17 670 7.10 5.90 732 16.60 13.70
609 1.47 1.22 671 7.20 5.90 733 16.80 13.90
610 1.53 1.27 672 7.30 6.00 734 17.00 14.00
611 1.58 1.30 673 7.40 6.10 735 17.30 14.30
612 1.63 1.35 674 7.50 6.20 736 17.50 14.40
613 1.68 1.38 675 7.60 6.30 737 17.70 14.60
614 1.73 1.43 676 7.70 6.30 738 17.90 14.80
615 1.78 1.47 677 7.80 6.40 739 18.10 14.90
616 1.83 1.51 678 7.90 6.50 740 18.30 15.10
617 1.88 1.55 679 8.00 6.60 741 18.50 15.30
618 1.93 1.59 680 8.10 6.70 742 18.70 15.40
619 1.98 1.64 681 8.20 6.80 743 18.90 15.60
620 2.03 1.68 682 8.30 6.80 744 19.10 15.80
621 2.13 1.76 683 8.40 6.90 745 19.30 15.90
622 2.23 1.84 684 8.50 7.00 746 19.50 16.10
623 2.33 1.92 685 8.60 7.10 747 19.70 16.30
624 2.43 2.02 686 8.70 7.20 748 19.90 16.40
625 2.54 2.10 687 8.80 7.30 749 20.10 16.60
626 2.63 2.17 688 8.90 7.40 750 20.30 16.70
627 2.71 2.26 689 9.00 7.50 751 20.50 16.90
628 2.85 2.35 690 9.10 7.50 752 20.70 17.10
629 2.95 2.45 691 9.20 7.60 753 20.90 17.20
630 3.05 2.50 692 9.30 7.70 754 21.10 17.40
631 3.15 2.60 693 9.40 7.80 755 21.30 17.60
632 3.25 2.70 694 9.50 7.80 756 21.50 17.70
633 3.35 2.75 695 9.60 7.90 757 21.70 17.90
634 3.45 2.85 696 9.70 8.00 758 21.90 18.10
635 3.55 2.95 697 9.80 8.10 759 22.10 18.20
636 3.65 3.05 698 9.90 8.20 760 22.30 18.40
637 3.75 3.10 699 10.00 8.30 761 22.50 18.60
638 3.85 3.20 700 10.20 8.40 762 22.70 18.80
639 3.95 3.30 701 10.40 8.60 763 22.90 18.90
640 4.05 3.35 702 10.60 8.70 764 23.10 19.10
641 4.15 3.45 703 10.80 8.90 765 23.30 19.20
642 4.25 3.55 704 11.00 9.10 766 23.60 19.50
643 4.35 3.60 705 11.20 9.20 767 23.90 19.70
644 4.45 3.70 706 11.40 9.40 768 24.30 20.10
645 4.55 3.80 707 11.60 9.60 769 24.60 20.30
646 4.65 3.85 708 11.80 9.70 770 25.00 20.60
647 4.75 3.95 709 12.00 9.90 771 25.30 20.90
648 4.85 4.00 710 12.20 10.10 772 25.60 21.10
649 4.95 4.10 711 12.40 10.20 773 26.10 21.50
650 5.10 4.20 712 12.60 10.40 774 26.40 21.80
651 5.15 4.25 713 12.80 10.60 775 26.70 22.00
652 5.25 4.35 714 13.00 10.70 776 27.10 22.30
653 5.40 4.45 715 13.20 10.90 777 27.40 22.60
654 5.50 4.55 716 13.40 11.00 778 27.90 23.00
655 5.60 4.60 717 13.60 11.20 779 28.40 23.40
656 5.70 4.70 718 13.80 11.40 780 28.90 23.90
657 5.80 4.75 719 14.00 11.50 781 29.40 24.30
658 5.90 4.85 720 14.20 11.70 782 29.90 24.70
659 6.00 4.95 721 14.40 11.90 783 30.40 25.10
660 6.10 5.05 722 14.60 12.10 784 31.00 25.50
661 6.20 5.10 723 14.80 12.20 785 31.50 26.00
