Overview

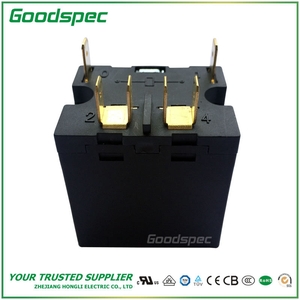

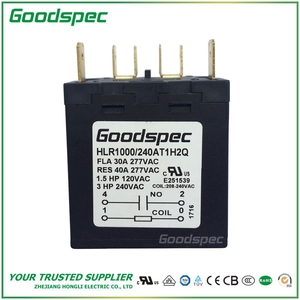

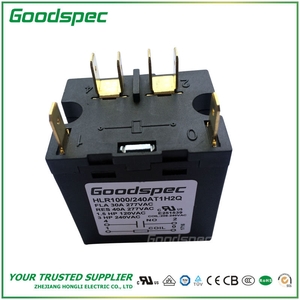

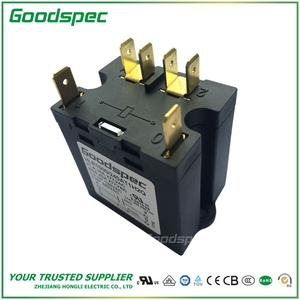

The HLR1000 Series High Power Relays are robust switching solutions designed for heavy-duty applications. With a nominal current rating of up to 40A, these relays are engineered for reliability in single-phase air conditioning compressors, motor control, and high-power electrical appliances.
Key Features
- High Power Capacity: Rated for 40A (AC-8a) and 30A (AC-8b), making it ideal for high-load industrial and domestic equipment.
- Compact Design: Small volume and lightweight construction with low coil power consumption.
- Long Service Life: Mechanical durability of 1,000,000 cycles and electrical life of 100,000 cycles.

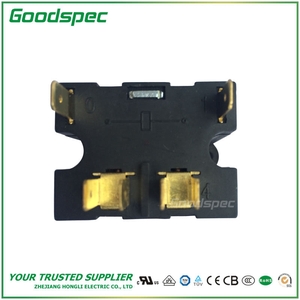

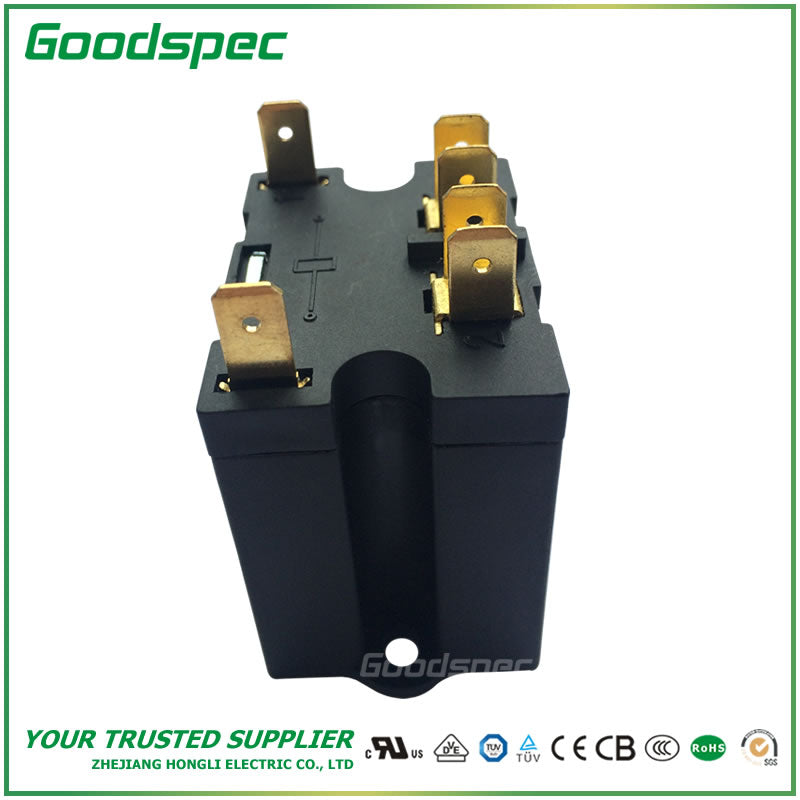

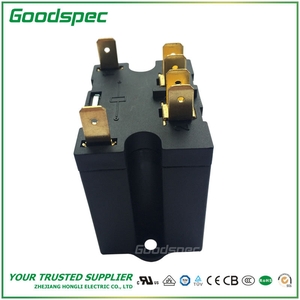

- Flexible Connectivity: Features double 1/4" quick-connect terminals for secure and easy wiring.
Technical Specifications
| Parameter |
Specification |
| Insulation Voltage (Ui) |
600V |
| Rated Contact Voltage (Ue) |
AC 240/277V |
| Nominal Current (Ie) |
40A (AC-8a) / 30A (AC-8b) |
| Coil Voltages (Us) |
24V, 120V, 208/240V, 277V, 480V AC |
Applications
Specifically designed for HVAC compressor control, motor management in power tools, electric heating systems, and various heavy-duty electrical machinery.
Standards & Certifications
- Compliance: Fully conforms to UL508, IEC60947, and GB14048 standards.
- Certifications: UL Listed (File E251539), RoHS compliant, and manufactured under ISO9001 certified systems.
