Overview

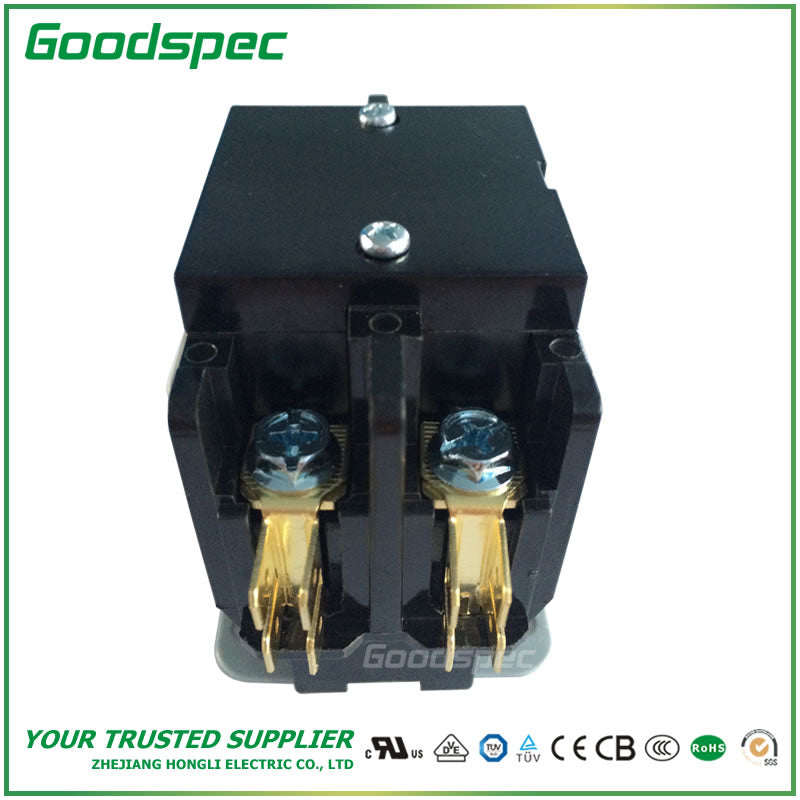

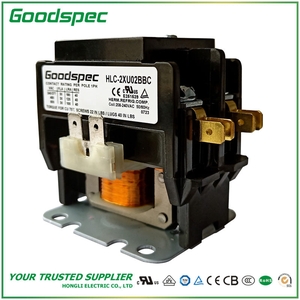

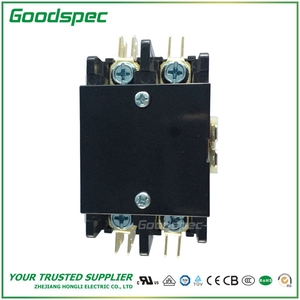

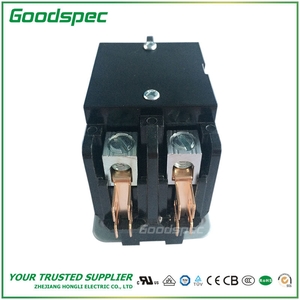

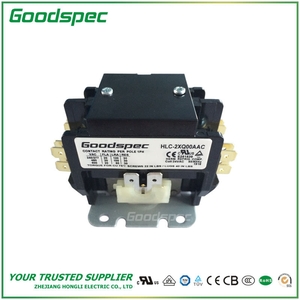

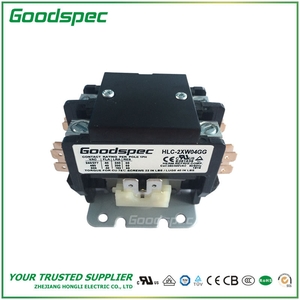

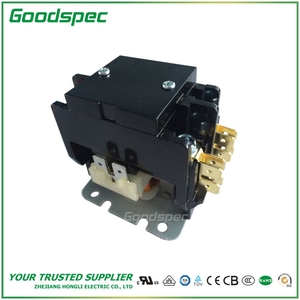

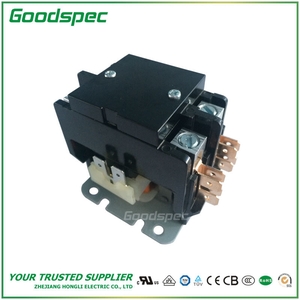

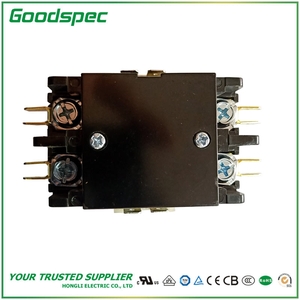

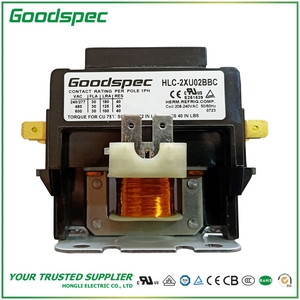

The HLC-2X Series Definite Purpose Contactors are high-reliability 2-pole switching devices designed for the control of single-phase motors and compressors. Engineered for the HVAC and domestic appliance sectors, these contactors provide efficient management of single-phase loads in 50/60Hz circuits.
Key Features
- 2-Pole Configuration: Specifically designed for single-phase applications, ensuring reliable starting and control of motors and compressors.
- Flexible Current Ratings: Rated for nominal currents up to 20A (Ie) with a resistive current capacity (Ith) of 30A.
- Long Operational Life: Built to last with a mechanical life of 1,000,000 cycles and an electrical life of up to 250,000 cycles.
- Comprehensive Connectivity: Available with various terminal options to ensure secure and efficient field wiring.
Technical Specifications
| Parameter |
Specification |
| Insulation Voltage (Ui) |
660V (IEC) / 600V (UL) |
| Rated Contact Voltage (Ue) |
240V / 277V / 480V / 600V AC |
| Nominal Current (Ie) |
20A (FLA) |
| Coil Voltages (Us) |
24V, 120V, 208/240V, 277V, 380/480V AC (50/60Hz) |
Applications
Widely used in the air conditioning industry for single-phase compressor control, as well as in refrigeration, water pumps, and other domestic and industrial single-phase electrical appliances.
Standards & Certifications
- Global Compliance: Fully conforms to UL508, IEC60947, and GB14048 standards.
- Verified Quality: Approved by UL, CUL, TUV, CE, and CCC; manufactured in ISO9001 certified facilities.
