HLC-1X 1.5-Pole Definite Purpose Contactors

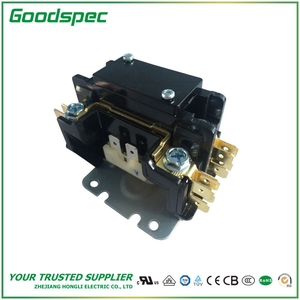

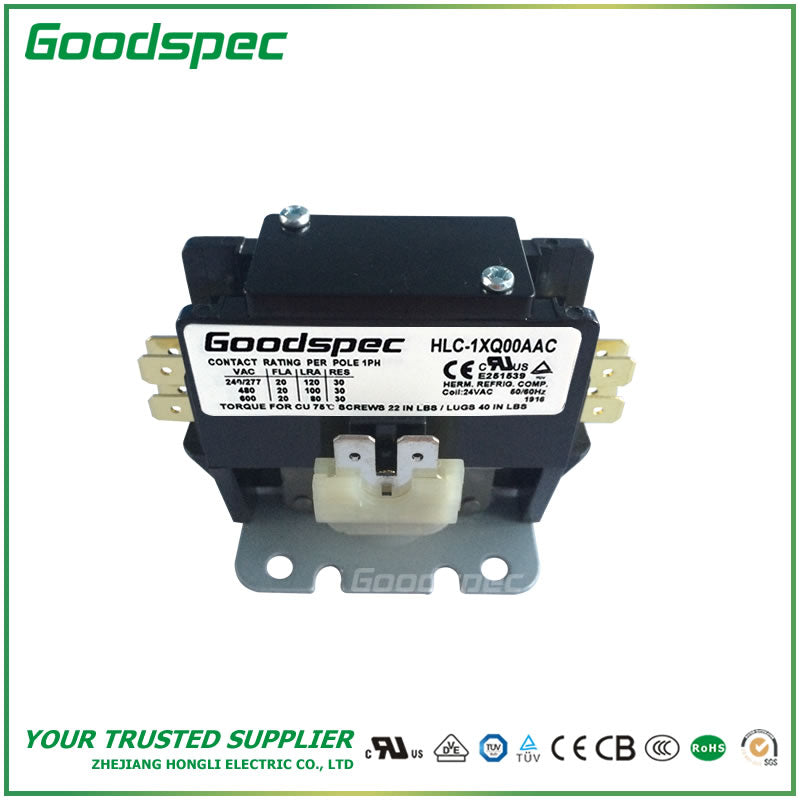

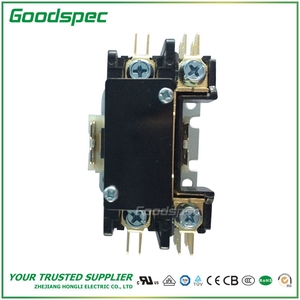

HLC-1XQ00AAC
HLC-1XQ00AAC

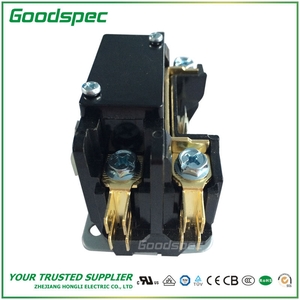

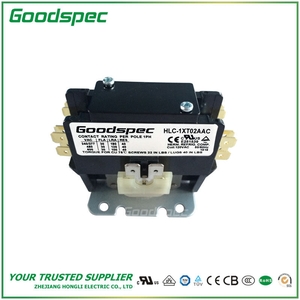

HLC-1XT02AAC
HLC-1XT02AAC

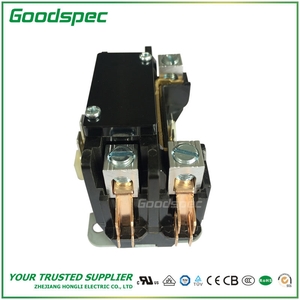

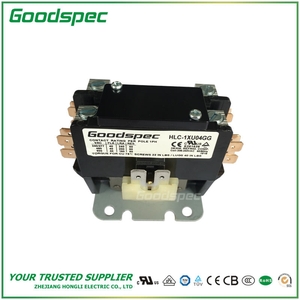

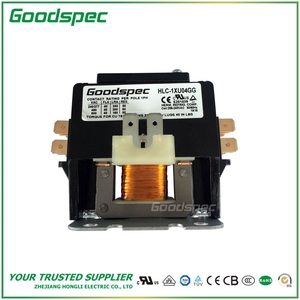

HLC-1XU04GG
HLC-1XU04GG
HLC-1XQ00AAC
HLC-1XT02AAC
HLC-1XU04GG
HLC-1XQ00AAC

Description

Overview

The HLC-1X Series Definite Purpose Contactors are specialized 1.5-pole switching devices (one pole with shunt) designed for the efficient control of single-phase loads. Engineered primarily for the air conditioning and domestic appliance industries, these contactors provide reliable starting and management for motors and compressors in 50/60Hz circuits.

Key Features

  • 1.5-Pole Configuration: Features one switching pole with a shunt, optimized for single-phase HVAC applications.
  • Reliable Load Management: Rated for nominal currents up to 20A (FLA) with a resistive rating (Ith) of 30A.
  • Durable Construction: Delivers a mechanical life of 1,000,000 cycles and an electrical life of up to 250,000 cycles.
  • Flexible Connectivity: Available with various terminal configurations to meet international wiring standards.

Technical Specifications

Parameter Specification
Insulation Voltage (Ui) 660V (IEC) / 600V (UL)
Rated Contact Voltage (Ue) 240V / 277V / 480V / 600V AC
Nominal Current (Ie) 20A (FLA)
Coil Voltages (Us) 24V, 120V, 208/240V, 277V, 380/480V AC

Applications

Ideally suited for single-phase compressor control in residential air conditioners, as well as for heaters, motors, and other single-phase loads in domestic and industrial equipment.

Standards & Certifications

  • Global Standards: Fully compliant with UL508, IEC60947, and GB14048 benchmarks.
  • Safety Certified: Approved by UL, CUL, TUV, CE, and CCC; manufactured within an ISO9001 certified quality framework.
