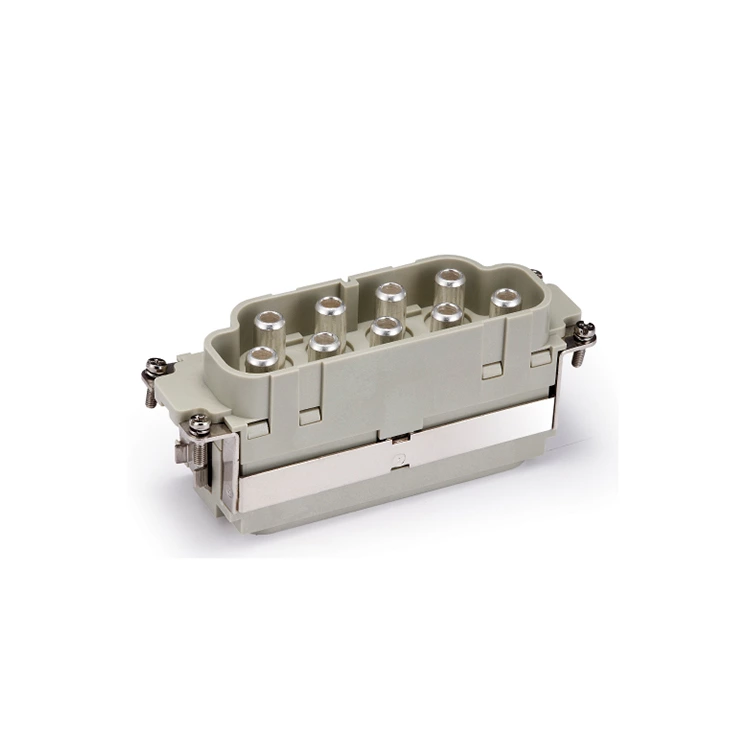

HK-008/0 power inserts provide eight contacts plus protective earth in the H24B enclosure platform. Male M and female F versions use axial-screw terminals for 10-25mm² conductors.
Models and electrical ratings
| Male insert | Female insert | Contacts | Enclosure platform |
|---|
| SO-HK-008/0-M | SO-HK-008/0-F | 8 power + PE | H24B |
| Rating basis | Rated current | Rated voltage | Additional conditions |
|---|
| EN 61984 | 100A | 690V | 8kV rated impulse voltage; pollution degree 3 |
| UL | 82A | 600V | UL rating |
Conductor preparation and tightening
| Property | Specification |
|---|
| Termination | Axial screw |
|---|
| Conductor range | 10-25mm², 7-3AWG |
|---|
| Maximum insulation diameter | 11.4mm |
|---|
| Stripping length | 13±1mm |
|---|
| Hexagonal driver | SW-4*100 |
|---|
| Conductor cross-section | Tightening torque |
|---|
| 10mm² | 6N·m |
| 16mm² | 6N·m |
| 25mm² | 7N·m |
Materials and operating limits
| Property | Specification |
|---|
| Contact material | Copper alloy |
|---|
| Contact finish | Hard-silver plated |
|---|
| Contact resistance | ≤0.5mΩ |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Outline and contact positions
The individual drawings show eight numbered power contacts, the PE position, mounting holes and male or female outline geometry. Use the selected gender drawing to check the mating face and installation space.
