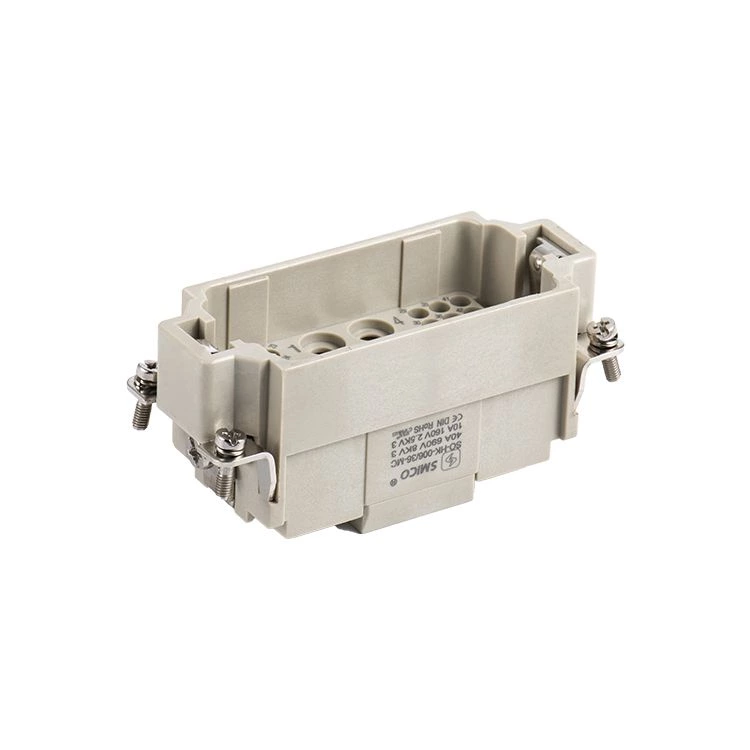

HK-006/36 hybrid crimp inserts combine six power contacts, thirty-six signal contacts and protective earth for H16B hoods and housings. Male MC and female FC versions use separate conductor ranges for the power and signal groups.
| Male insert | Female insert | Contacts | Enclosure platform |
|---|---|---|---|
| SO-HK-006/36-MC | SO-HK-006/36-FC | 6 power + 36 signal + PE | H16B |
| Property | Power contacts | Signal contacts |
|---|---|---|
| Rated current | 40A | 10A |
| Rated voltage | 690V | 160V |
| Rated impulse voltage | 8kV | 2.5kV |
| Pollution degree | 3 | 3 |
| Rated voltage according to UL/CSA | 600V | 300V |
| Termination | Crimp | Crimp |
| Conductor cross-section | 1.5-6mm² | 0.14-2.5mm² |
| Wire size | 16-10AWG | 26-14AWG |
| Contact resistance | ≤0.3mΩ | ≤3mΩ |
The maximum insulation diameter is 5mm.
| Property | Specification |
|---|---|
| Contact material | Copper alloy |
| Contact finish options | Hard-silver plated or hard-gold plated |
| Insulation resistance | ≥1010Ω |
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
| Temperature range | -40°C to +125°C |
| Flammability according to UL 94 | V0 |
| Mechanical life | ≥500 mating cycles |
These identifiers assist catalogue comparison. They do not establish verified mating compatibility or an interchangeable complete assembly.
| Catalogue label | Male reference | Female reference |
|---|---|---|
| H | 09380423001 | 09380423101 |
| ILME | CXM 6/36 | CXF 6/36 |
| TE | T2120422101-000 | T2120422201-000 |
| WEIDMULLER | HDC S6/36 MC | HDC S6/36 FC |
| WIELAND | 72.713.4253.0 | 72.703.4253.0 |
The drawings show six larger power positions between two banks of smaller signal positions, together with PE, mounting-hole locations and panel-cutout geometry. Use the male or female drawing when checking the mating face and installation depth.
