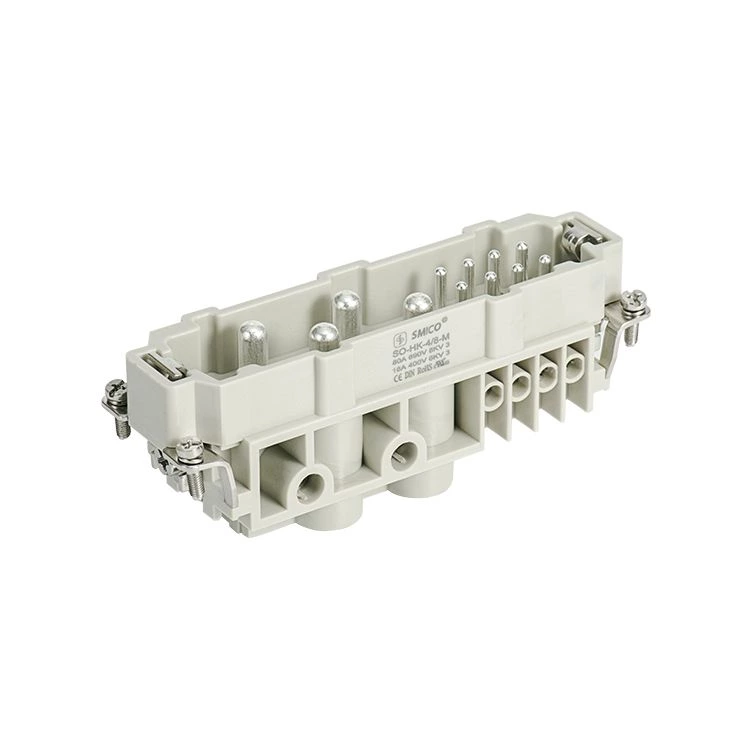

HK-004/8 hybrid inserts combine four power contacts, eight signal contacts and protective earth for H24B hoods and housings. Both circuit groups use screw connections, with conductor preparation and tightening values selected separately.
Model selection
| Male insert | Female insert | Contact arrangement | Enclosure platform |
|---|
| SO-HK-004/8-M | SO-HK-004/8-F | 4 power + 8 signal + PE | H24B |
Electrical ratings
| Property | Power contacts | Signal contacts |
|---|
| Rated current | 80A | 16A |
|---|
| Rated voltage | 830V | 400V |
|---|
| Rated impulse voltage | 8kV | 6kV |
|---|
| Pollution degree | 3 | 3 |
|---|
| Rated voltage according to UL/CSA | 600V | 600V |
|---|
| Contact resistance | ≤0.3mΩ | ≤1mΩ |
|---|
Wiring and conductor preparation
| Property | Power contacts | Signal contacts |
|---|
| Conductor range | 1.5-16mm² | 0.5-2.5mm² |
|---|
| Wire size | 16-6AWG | 20-14AWG |
|---|
| Stripping length | 14mm | 7.5mm |
|---|
| Tightening torque | By conductor size below | 0.5N·m |
|---|
| Power conductor cross-section | Tightening torque |
|---|
| 1.5mm² | 1.2N·m |
| 2.5mm² | 2N·m |
| 4mm² | 3N·m |
| 6mm² | 3N·m |
| 10mm² | 3N·m |
| 16mm² | 3N·m |
Materials and operating limits
| Property | Specification |
|---|
| Contact material and finish | Copper alloy, hard-silver plated |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Catalogue reference identifiers
These identifiers assist catalogue comparison. They do not establish verified mating compatibility or an interchangeable complete assembly.
| Catalogue label | Male reference | Female reference |
|---|
| H | 09380122601 | 09380122701 |
| ILME | CXM 4/8 | CXF 4/8 |
| TE | T2100122101-000 | T2100122201-000 |
| WEIDMULLER | HDC S4/8 MS | HDC S4/8 FS |
| WIELAND | 72.216.1253.0 | 72.206.1253.0 |
Contact layout and mounting drawings
The drawings separate the four larger power positions from the bank of eight signal positions and show PE, mounting holes and panel-cutout geometry. Use the male or female outline to check mating-face orientation and installation depth.
