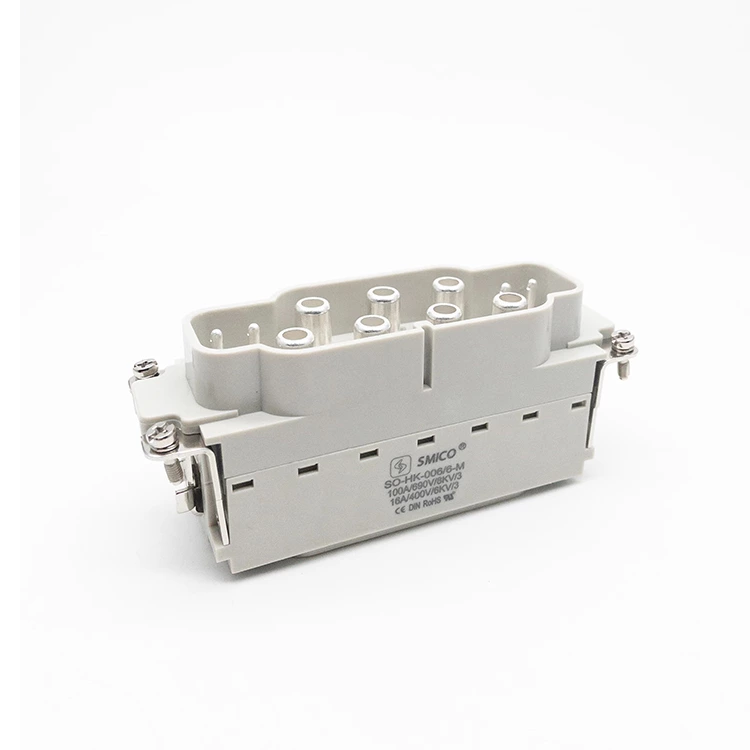

HK-006/6 hybrid inserts combine six power contacts, six signal contacts and protective earth for H24B hoods and housings. The power connections use axial-screw terminals for 16-35mm² conductors. Male M and female F versions have separate mating-face and outline drawings.
Model selection
| Male insert | Female insert | Contact arrangement | Enclosure platform |
|---|
| SO-HK-006/6-M | SO-HK-006/6-F | 6 power + 6 signal + PE | H24B |
Power and signal ratings
| Property | Power contacts | Signal contacts |
|---|
| Rated current according to EN 61984 | 100A | 16A |
|---|
| Rated voltage according to EN 61984 | 690V | 400V |
|---|
| Rated impulse voltage | 8kV | 6kV |
|---|
| Pollution degree | 3 | 3 |
|---|
| Rated voltage according to UL | 600V | 300V |
|---|
| Rated voltage according to CSA | 600V | 600V |
|---|
| Rated current according to CSA | 100A | 15A |
|---|
| Contact resistance | ≤0.5mΩ | ≤3mΩ |
|---|
Conductor preparation
| Property | Power contacts | Signal contacts |
|---|
| Conductor cross-section | 16-35mm² | 0.2-2.5mm² |
|---|
| AWG range | 5-2AWG | 24-13AWG |
|---|
| Stripping length | 13±1mm | 7.5mm |
|---|
| Tightening torque | By conductor size below | 0.8N·m |
|---|
| Power conductor cross-section | Tightening torque |
|---|
| 16mm² | 6N·m |
| 25mm² | 7N·m |
| 35mm² | 8N·m |
Materials and operating limits
| Property | Specification |
|---|
| Contact material and finish | Copper alloy, hard-silver plated |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Contact positions and outline drawings
The drawings identify the six larger power positions, six smaller signal positions, PE and mounting geometry. Check the selected gender drawing when arranging circuit groups and installation space.
