HHD6 Series DC motor speed regulators are used for adjustable drive control on DC motors from small rail-mounted applications to higher-power armature-output systems. HHD6-E covers compact low-power motor control, while HHD6-G provides 400W and 1200W ratings with excitation output.
Common Parameters
| Parameter | Specification |
|---|
| Power Supply | AC220V, 50/60Hz |
| Relative Humidity | 90%RH or less |
| Altitude | 1000m or below |
| Two-Wire Motor Use | Do not connect the excitation output line; connect only the armature line |

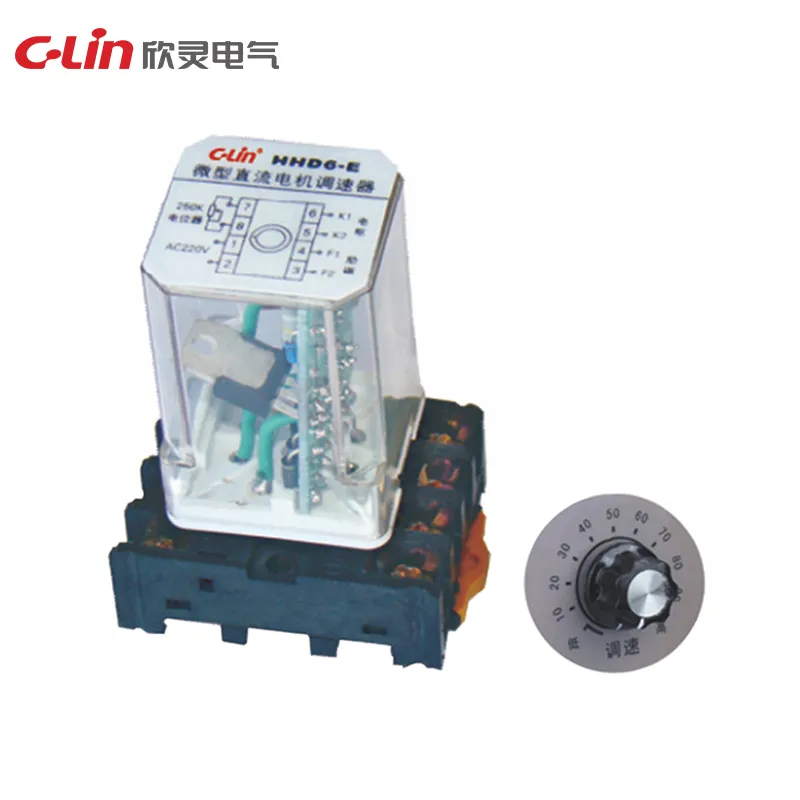

HHD6-E
| Parameter | Specification |
|---|
| Speed Regulation Power | Below 60W |
| Armature Output Voltage | DC0-200V |
| Excitation Output Voltage | DC200V +/-10% |
| Dimensions | 41 x 55 x 74 mm |
| Installation Method | 35mm rail mounting |

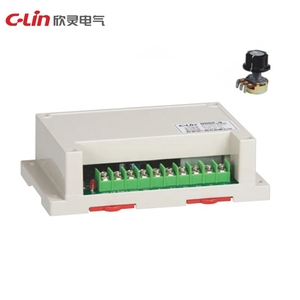

HHD6-G
| Parameter | Specification |
|---|
| Speed Regulation Power | 400W 1.8A or 1200W 5.5A |
| Armature Output Voltage | DC0-220V |
| Excitation Output Voltage | DC220V +/-10% |
| Dimensions | 90 x 145 x 41 mm |
