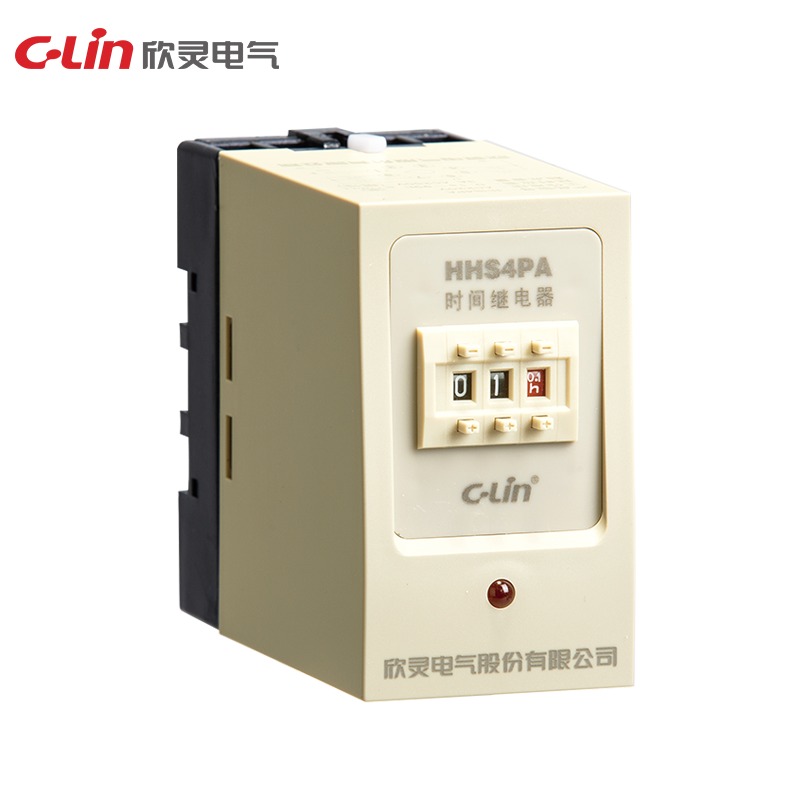

HHS4PA time relays provide power-on delay control for timing, sequencing and delayed switching circuits. The relay supports a wide 0.1s-99h delay range, two delayed contact sets and flexible panel or 35mm DIN-rail mounting.
| Model | HHS4PA |
|---|---|
| Operating power supply | DC24V; AC24V, AC220V, AC380V |
| Time delay range | 0.1s-99h adjustable |
| Repeatability error | ≤1% |
| Operating mode | Power-on delay |
| Contact form | Two sets of time-delay contacts |
| Contact rating | 3A AC250V resistive load |
| Overall dimensions | 45×82×90mm |
| Mounting method | Panel mounting or 35mm DIN-rail mounting |
