HHS19 Series time relays bring multiple timing functions into an 18mm slim body for compact control panels. HHS19 handles multifunction delay modes, HHS19F is used for power-off delay, and HHS19R supports cyclic delay timing with longer range selection.
Common Parameters
| Contact rating | 16A AC250V resistive load |
|---|
| Overall dimensions | 18×65×90mm |
|---|
| Mounting method | Panel mounting or 35mm DIN-rail mounting |
|---|

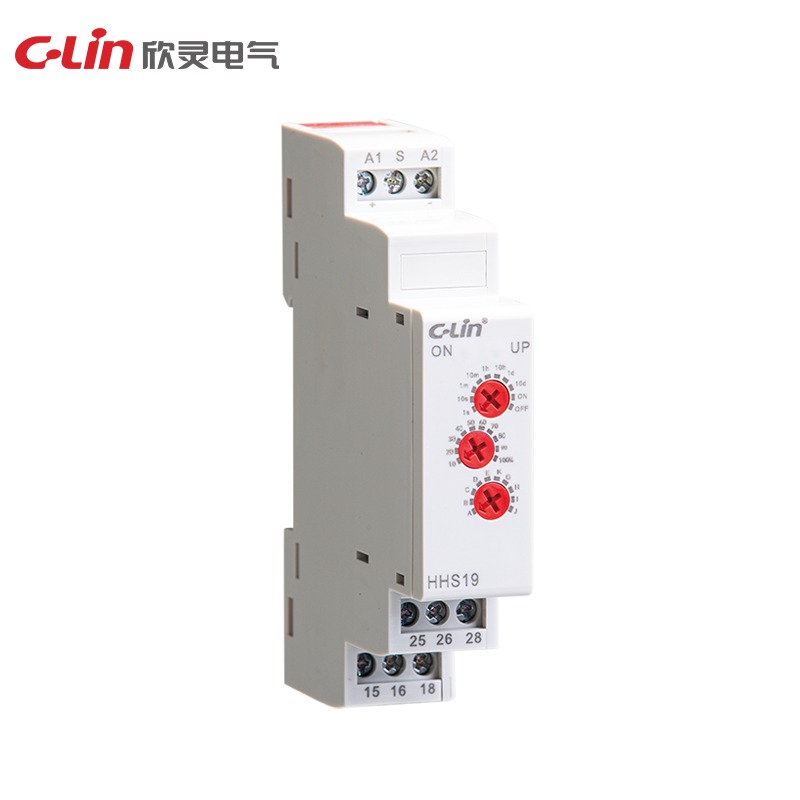

HHS19
| Operating power supply | HHS19: AC/DC110-240V or DC24V; HHS19-T: AC/DC12-240V |
|---|
| Time delay range | 0.1s-10 days |
|---|
| Repeatability error | ≤1% |
|---|
| Operating modes | 10 modes including on-delay and off-delay |
|---|
| Contact configuration | HHS19: two delayed contacts; HHS19-C: one delayed contact and one instantaneous contact |
|---|
| Note | Output modes can be customized according to functional requirements |
|---|
HHS19F
| Operating power supply | AC/DC12-240V |
|---|
| Time delay range | 0.1s-10min |
|---|
| Repeatability error | ≤5% |
|---|
| Operating mode | Off-delay / power-off delay |
|---|
| Contact configuration | One delayed changeover contact |
|---|

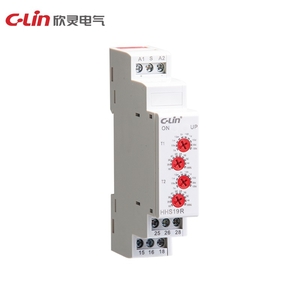

HHS19R
| Operating power supply | HHS19R: AC/DC110-240V or DC24V; HHS19R-T: AC/DC12-240V |
|---|
| Time delay range | 0.1s-100 days |
|---|
| Repeatability error | ≤1% |
|---|
| Operating mode | Cyclic delay |
|---|
| Contact configuration | HHS19R: two delayed contacts; HHS19R-C: one delayed contact and one instantaneous contact |
|---|
