HH53P / HH54P General Purpose Relays


Description

The HH53P MY3 and HH54P MY4 general purpose relays are compact electromagnetic relays for control circuits, signal switching, and general automation panels. The two models share the same body size and coil specification range, while the main difference is the contact arrangement and load rating.

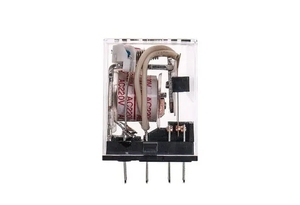

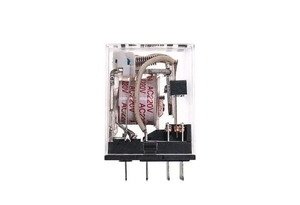

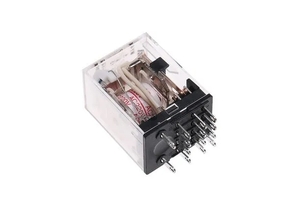

Relay Model Comparison

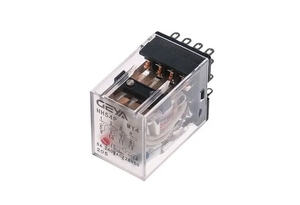

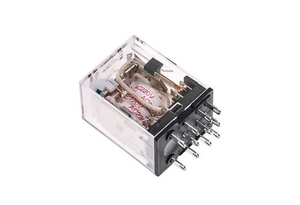

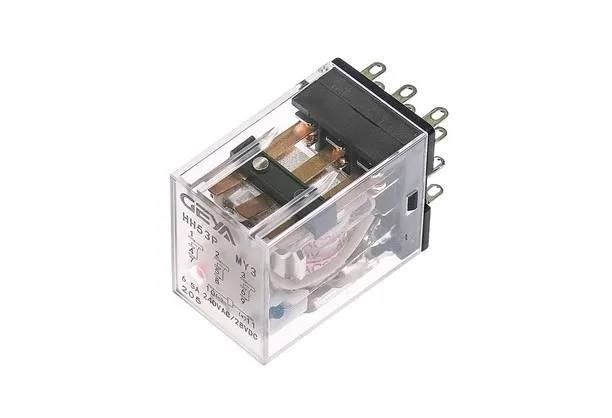

ModelHH53P MY3HH54P MY4
Dimension27.3 x 21 x 35 mm27.3 x 21 x 35 mm
Electric contact3C / 3H / 3D4C / 4H / 4D
Electric load6.5 A5 A
Switching voltage240 VAC / 28 VDC240 VAC / 28 VDC
Contact materialSilver alloySilver alloy
Coil powerDC 0.9 W / AC 1.2 VADC 0.9 W / AC 1.2 VA
Coil voltageDC 3 V-220 V, AC 3 V-380 VDC 3 V-220 V, AC 3 V-380 V
Electrical life>=100000 operations>=100000 operations
InstallationPCB printing plate or basePCB printing plate or base
CertificationCQC, CECQC, CE

Relay Bases

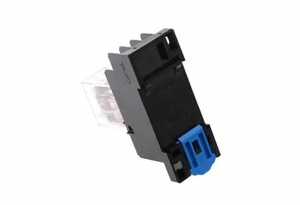

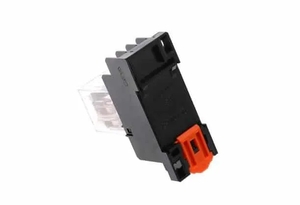

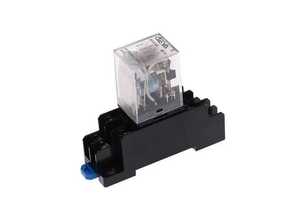

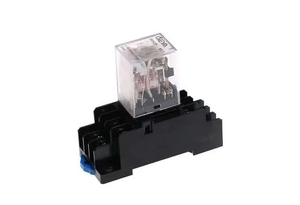

Matching bases are available for HH53P MY3 and HH54P MY4 relays. They provide socket-style installation for easier wiring, replacement, and maintenance in control panels.

Applicable relayHH53P MY3 / HH54P MY4
Load current7 A
Load voltage300 V
Dielectric withstand2500 V AC/S

Applications

  • General control circuit switching.
  • Automation panels and machine control cabinets.
  • Signal switching and auxiliary control circuits.
  • Installations requiring either PCB mounting or replaceable relay base mounting.

Catalog Note

The relay catalog is a general relay overview and includes additional relay models beyond HH53P and HH54P.
