HF.P frames accommodate connector modules in four capacities. Each size is offered as an LA or UA version, with different mounting holes and locating details. Match the complete frame designation when selecting mounting hardware and the corresponding drawing.
| LA model | UA model | Module capacity | Flange length × width |
|---|---|---|---|
| HF6B.P-LA | HF6B.P-UA | 2 | 65.7×33mm |
| HF10B.P-LA | HF10B.P-UA | 3 | 79.3×44.9mm |
| HF16B.P-LA | HF16B.P-UA | 4 | 94×44.9mm |

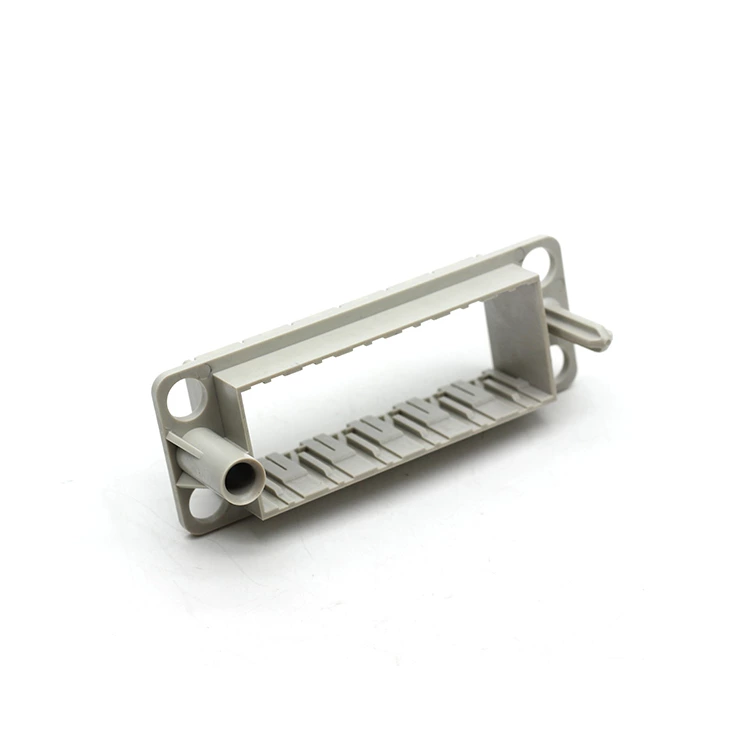

| HF24B.P-LA | HF24B.P-UA | 6 | 123.4×44.9mm |
| Property | Specification |
|---|---|
| Frame material | PC-GF20 polycarbonate |
| Temperature range | -40°C to +125°C |
| Mechanical life | ≥500 mating cycles |
LA drawings show Ø4.2mm mounting holes; UA drawings show Ø10.7mm openings. The 6B frame has two mounting positions, while the larger sizes have four. Locating pins, receiving bores and module retention details must be matched to the chosen version. Use the individual drawings for hole positions, tolerances and the complete installation envelope.
