HEE crimp-terminal inserts provide 10, 18, 32 or 46 contacts plus protective earth. Male MC and female FC versions accept copper-alloy crimp contacts selected for conductor size and finish. The series is rated 16A, with enclosure sizes from H6B to H24B.
Models and enclosure sizes
| Contacts, plus PE | Male insert | Female insert | Enclosure size |
|---|

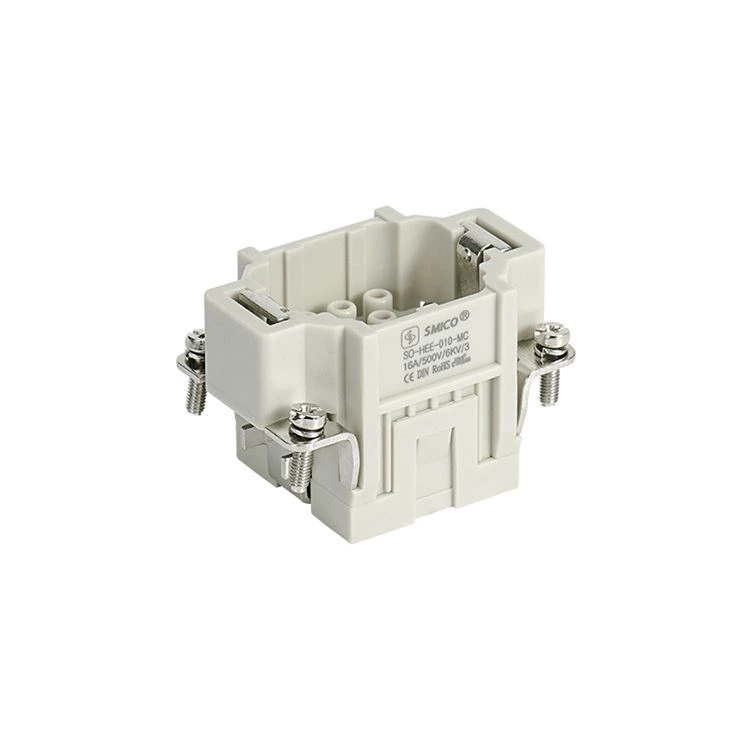

| 10 | SO-HEE-010-MC | SO-HEE-010-FC | H6B |
| 18 | SO-HEE-018-MC | SO-HEE-018-FC | H10B |
| 32 | SO-HEE-032-MC | SO-HEE-032-FC | H16B |
| 46 | SO-HEE-046-MC | SO-HEE-046-FC | H24B |
Wiring and contact options
| Connection property | Specification |
|---|
| Termination | Crimp |
|---|
| Conductor cross-section | 0.14-4mm² |
|---|
| Wire size | 26-12AWG |
|---|
| Stripping length | 7.5mm |
|---|
| Contact material | Copper alloy |
|---|
| Contact finish options | Hard-gold plated or hard-silver plated |
|---|
| Contact resistance | ≤1mΩ |
|---|
Electrical ratings
| Condition | Current | Voltage | Impulse voltage | Pollution degree |
|---|
| EN 61984 | 16A | 500V | 6kV | 3 |
| Alternative rating at pollution degree 2 | 16A | 830V | 8kV | 2 |
| Property | Specification |
|---|
| Rated voltage according to UL/CSA | 600V |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Installation drawings
Choose the crimp contact for the actual conductor cross-section and required plating. Separate male and female drawings show the contact layout, insert profile and panel cut-out for each contact count. Use the complete MC or FC model code when checking installation dimensions.
