HE Spring-Terminal inserts combine spring conductor connections with rectangular male MSB and female FSB bodies. Available contact counts are 6, 10, 16 and 24 plus protective earth. Each size has a dedicated male and female outline, so the full suffix matters when checking the space behind the insert.
Models and enclosure sizes
| Contacts, plus PE | Male model | Female model | Hood and housing size |
|---|

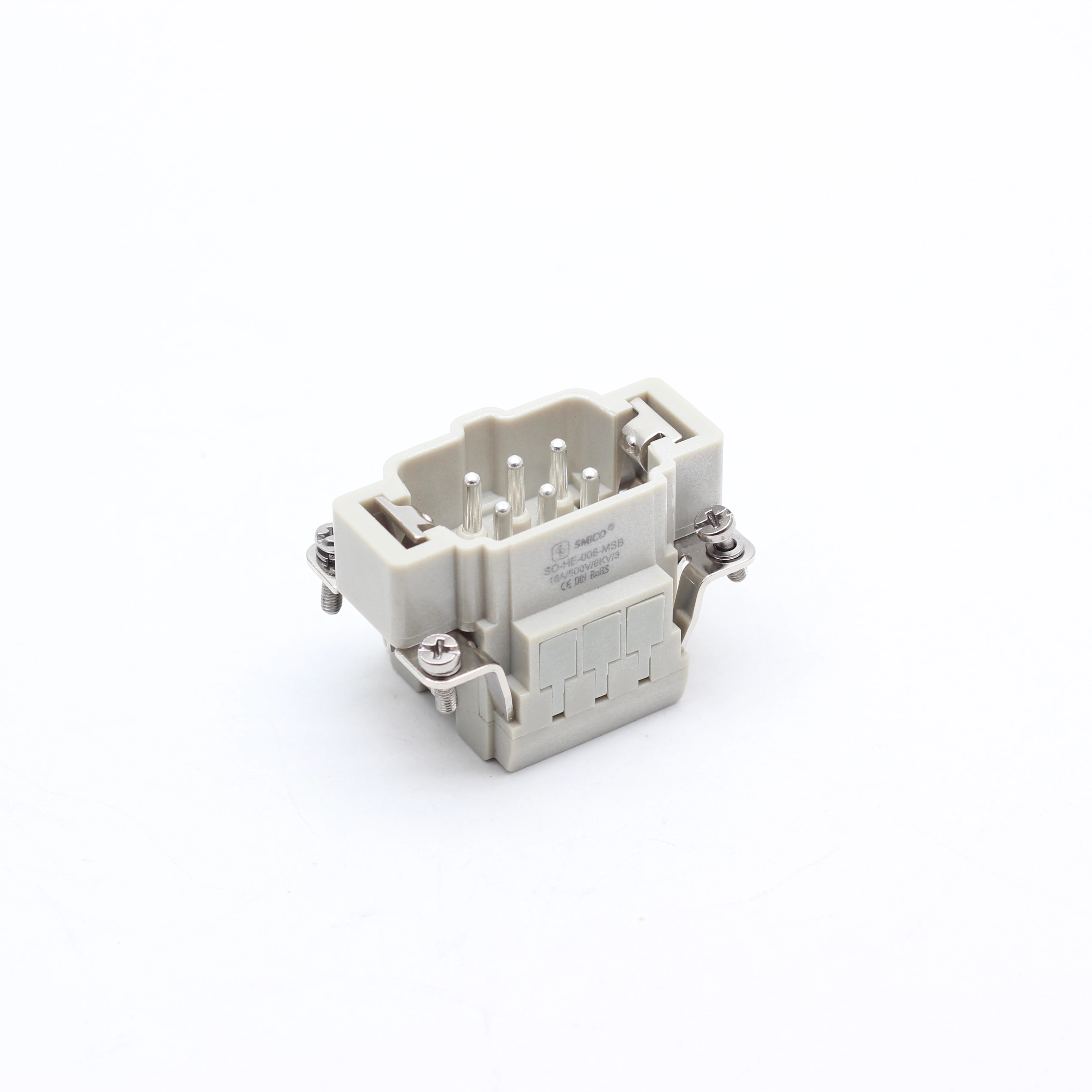

| 6 | SO-HE-006-MSB | SO-HE-006-FSB | H6B |
| 10 | SO-HE-010-MSB | SO-HE-010-FSB | H10B |
| 16 | SO-HE-016-MSB | SO-HE-016-FSB | H16B |
| 24 | SO-HE-024-MSB | SO-HE-024-FSB | H24B |
The model endings MS B and FS B on the drawings correspond to MSB and FSB in the model table. Select the required contact count and complementary gender, then check the hood entry and housing mounting style against the cable assembly.
Wire preparation and contacts
| Property | Specification for the listed MSB/FSB models |
|---|
| Termination | Spring terminal |
|---|
| Conductor cross-section | 0.14-2.5mm² |
|---|
| Wire size | 26-14AWG |
|---|
| Stripping length | 7-9mm |
|---|
| Contact material | Copper alloy |
|---|
| Contact surface | Hard-silver plated |
|---|
| Contact resistance | ≤1mΩ |
|---|
Strip each conductor within the specified range and connect it through the spring terminal. Use the terminal layout for the chosen model to identify conductor entries and contact positions. Insert-mounting screws are separate from the spring conductor connection.
Electrical performance and materials
| Rating condition | Current | Voltage | Impulse voltage | Pollution degree |
|---|
| EN 61984 | 16A | 500V | 6kV | 3 |
| Additional pollution-degree-2 rating | 16A | 400/690V | 6kV | 2 |
| Property | Specification |
|---|
| Rated voltage according to UL/CSA | 600V |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insulating body | Polycarbonate |
|---|
| Body colour | RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Installation dimensions
| Model | Length | Width | Height | Longitudinal fixing pitch |
|---|
| SO-HE-006-MSB | 51mm | 34mm | 34.7mm | 44mm |
| SO-HE-006-FSB | 51mm | 34mm | 36.5mm | 44mm |
| SO-HE-010-MSB | 64mm | 34mm | 34.5mm | 57mm |
| SO-HE-010-FSB | 64mm | 34mm | 36.2mm | 57mm |
| SO-HE-016-MSB | 84mm | 34mm | 34.7mm | 77.5mm |
| SO-HE-016-FSB | 84mm | 34mm | 36.3mm | 77.5mm |
| SO-HE-024-MSB | 111mm | 34mm | 34.7mm | 104mm |
| SO-HE-024-FSB | 111mm | 34mm | 36.3mm | 104mm |
Each model drawing includes the insert outline, terminal arrangement and panel cutout. The cutout drawings specify 3.3mm fixing holes and a 27mm transverse fixing pitch. Check the complete cutout profile and gender-specific height before finalizing the mounting panel.
