HC6B hood configurations
HC6B hoods provide a bolted connection for a sealed connector assembly. Choose top entry for cable routing above the connector or side entry for routing along the mounting surface.
| Model | Cable entry | Connection |
|---|

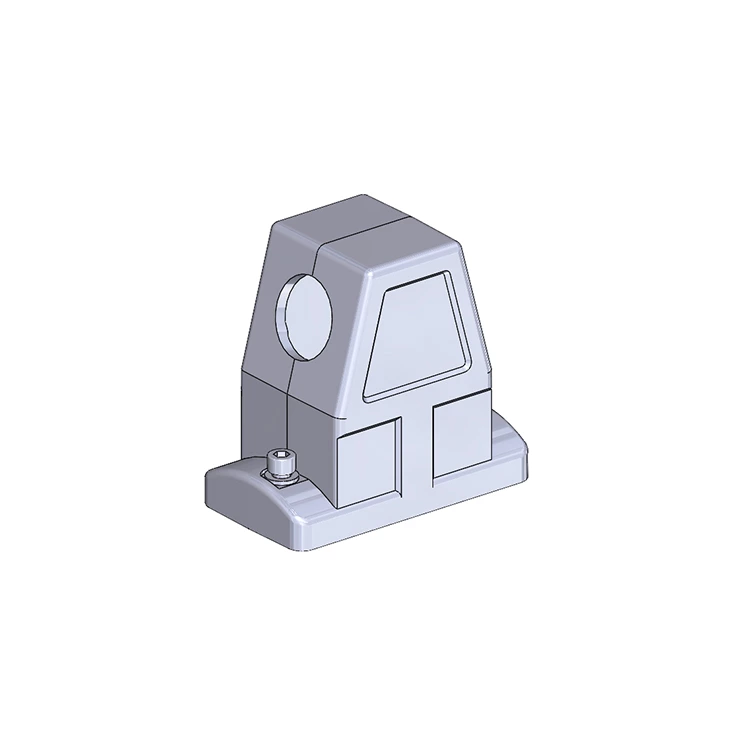

| HC6B-SKH-2S-M32 | One M32 side entry | Two-screw bolted interface |
| HC6B-TKH-2S-M32 | One M32 top entry | Two-screw bolted interface |
Technical specifications
| Property | Specification |
|---|
| Hood material | Die-cast aluminium |
|---|
| Colour | Grey, RAL7037 |
|---|
| Fastening | Bolted connection; stainless steel fastening elements |
|---|
| Seal | NBR |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability of applicable nonmetallic components | UL94V0 |
|---|
| Protection | IP68/IP69K for the fully sealed and fastened connector assembly |
|---|
Outline and panel preparation
| Dimension | Both entry configurations |
|---|
| Overall footprint | 105x57mm |
|---|
| Height | 99.5mm |
|---|
| Panel opening | 51x35mm |
|---|
| Fixing-hole centres | 70x32mm |
|---|
| Fixing holes | Four Ø4.5mm holes |
|---|
The outline drawings use a general M/PG entry label; the models listed here specify M32. Match the cable gland and mounting components to the complete hood designation, and leave space for screw access and the cable bend.
