HC24B hood selection
HC24B hoods provide a two-screw mounting interface with top or side cable entry. Both configurations use the same external footprint and panel-opening pattern. Choose the complete model code to match the cable route and entry components.
| Model | Cable-entry direction | Thread |
|---|

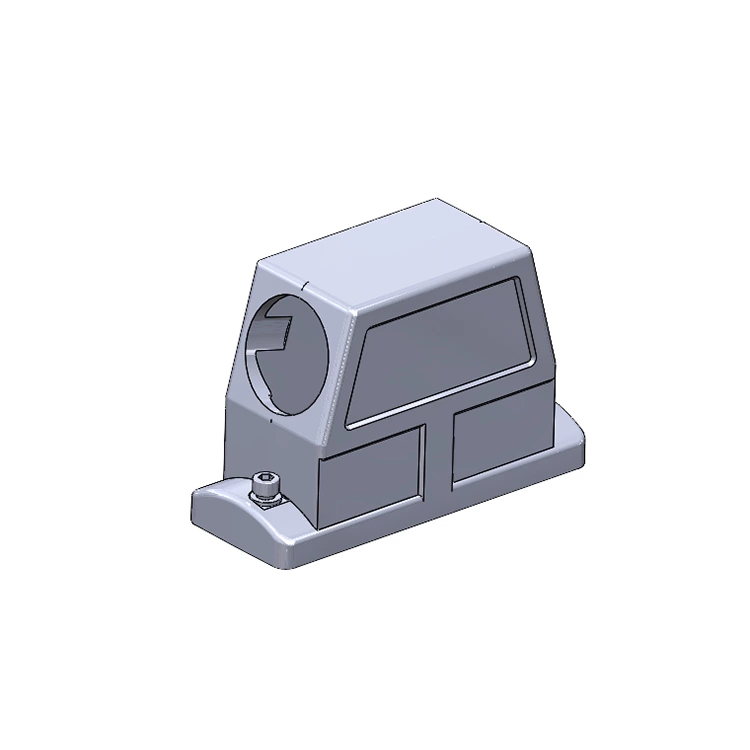

| HC24B-SKH-2S-M32 | Side | M32 |
| HC24B-TKH-2S-M32 | Top | M32 |
Construction and operating limits
| Property | Specification |
|---|
| Housing material | Die-cast aluminium |
|---|
| Colour | Grey, RAL7037 |
|---|
| Interlocking method | Bolted connection |
|---|
| Fastening elements | Stainless steel |
|---|
| Seal material | NBR |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Applicable nonmetallic component flammability | UL94V0 |
|---|
| Protection | IP68/IP69K for the correctly sealed and fastened connector assembly |
|---|
Outline dimensions
| Dimension | Both entry configurations |
|---|
| Length and width | 152x57mm |
|---|
| Height | 100mm |
|---|
| Panel opening | 111x35mm |
|---|
| Fixing-hole centre pattern | 130x32mm |
|---|
| Fixing holes | Four Ø4.5mm holes |
|---|
The general outline drawings show M/PG cable-entry positions. Use M32 cable-entry components for the models listed here, and check gland clearance and screw access before assembly.
