HC16B configuration choice
HC16B connector hoods use a bolted mounting interface and an M32 cable entry. The top-entry and side-entry versions share their external footprint and panel-opening geometry, allowing cable direction to be selected for the installation.
| Model | Entry direction | Entry thread | Outline drawing designation |
|---|

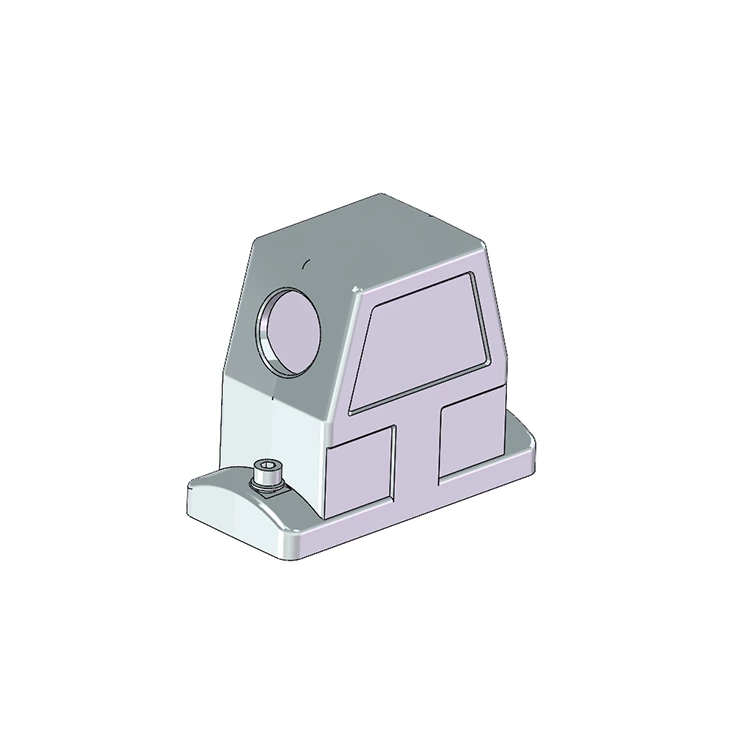

| HC16B-SKH-2S-M32 | Side | M32 | HC16B-SK |
| HC16B-TKH-2S-M32 | Top | M32 | HC16B-TK |
Technical data
| Property | Specification |
|---|
| Hood material | Die-cast aluminium |
|---|
| Colour | Grey, RAL7037 |
|---|
| Connection | Two-screw bolted interface |
|---|
| Fastening-element material | Stainless steel |
|---|
| Seal | NBR |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Applicable nonmetallic component flammability | UL94V0 |
|---|
| Protection | IP68/IP69K for the fully sealed and fastened connector assembly |
|---|
Mounting layout
| Dimension | Both configurations |
|---|
| Hood footprint | 125x57mm |
|---|
| Hood height | 100mm |
|---|
| Panel opening | 86x35mm |
|---|
| Four-hole centre pattern | 111x32mm |
|---|
Match the mounting fasteners to the mating flange and panel. The drawings mark the entry position as M/PG; the listed models specify M32. Allow room for the cable gland, cable bend and access to both fastening screws.
