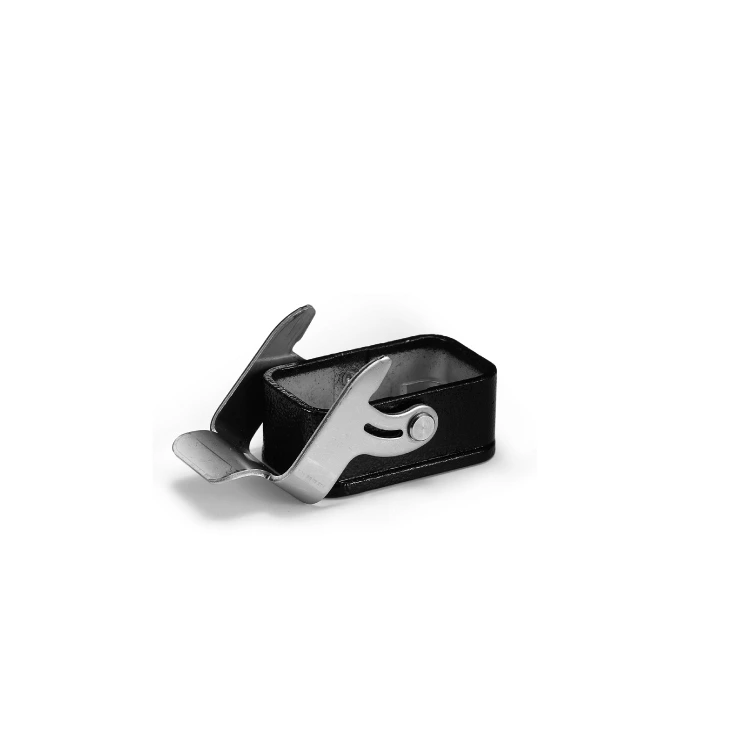

HC metal hoods and housings combine die-cast zinc bodies in black RAL9005 with an elastic metal lever locking system. A bulkhead housing mates with two-peg hoods in several M25 cable-entry configurations.
| Model | Configuration | Cable entry | Locking interface |
|---|---|---|---|
| HC-ST-1L | Bulkhead housing | Through panel | One metal lever |
| HC-SKHS-2B-M25 | Side-entry hood | Internal M25 thread | Two pegs |
| HC-TKHS-2B-M25 | Top-entry hood | Internal M25 thread | Two pegs |
| HC-TKH-2B-M25 | Top-entry hood | External M25 thread | Two pegs |
| HC-SKH-2B-M25 | Side-entry hood, extended body | External M25 thread | Two pegs |
| HC-SK-2B-M25 | Side-entry hood | External M25 thread | Two pegs |
Select the full hood designation: M25 alone does not distinguish an internal-thread entry from an external-thread entry. Check the mating cable gland, insert clearance and cable bend space for the chosen configuration.
| Property | Specification |
|---|---|
| Body material | Die-cast zinc |
| Colour | Black, RAL9005 |
| Locking mechanism | Elastic metal pressing lever |
| Locking-element material | Stainless steel |
| Seal | NBR |
| Temperature range | -40°C to +125°C |
| Flammability of applicable nonmetallic components | UL94V0 |
| Protection | IP65 according to EN60529 for the correctly sealed and locked connector |
Keep the mating seal clean and leave room to operate the locking lever. Select inserts and cable-entry components separately for the completed connection.
