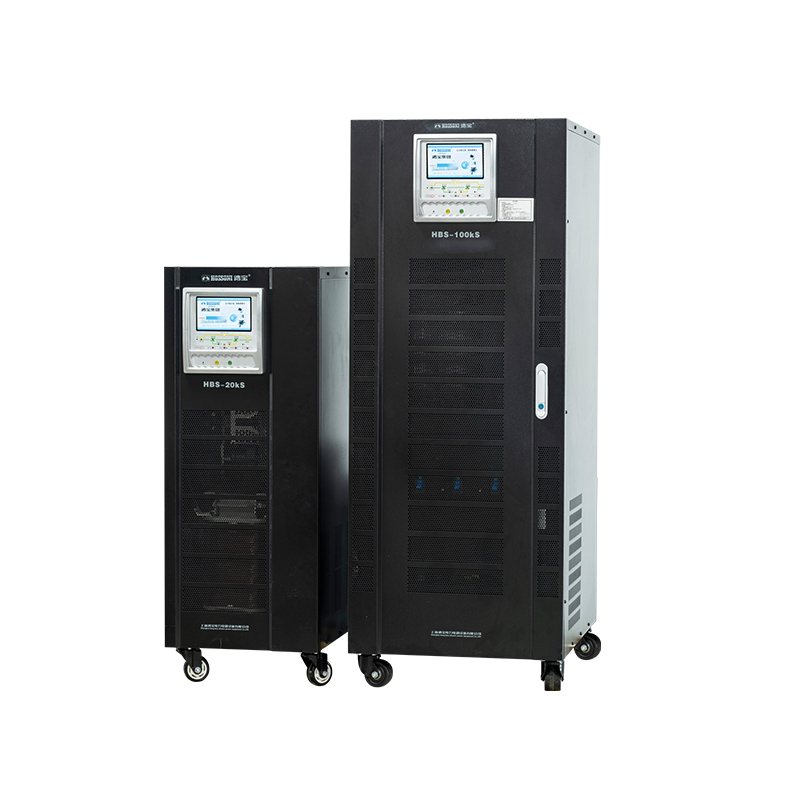

HBS Series is a high-power three-in three-out intelligent power frequency online UPS, with single-machine capacity from 6KVA to 400KVA. It integrates digital control, information management and network monitoring, with signal acquisition, signal processing, monitoring and protection systems for varied electrical environments such as high-rise buildings, road lighting, power systems, industrial and mining enterprises and network rooms.
Features
- Intelligent digital control using high-speed microcontroller and programmable logic devices.
- IGBT inverter technology with high-speed switching, high-voltage and high-current operation characteristics.
- Flexible parallel technology for single machine, 1+1 parallel machine and N+1 parallel redundancy systems.
- Three-phase independent PWM modulation and full-bridge IGBT inverter for stable output under load jumps from 0 to 100%.
- 7-inch Chinese and English color LCD touch screen with event record display and optional menu language.
- Input/output over-voltage and under-voltage protection, input surge protection, phase-sequence protection, battery over-charge and over-discharge protection, output overload and short-circuit protection, over-temperature protection and alarms.
- Intelligent battery charging with equalized floating-charge conversion and temperature compensation charge/discharge management.
- Input/output isolation to reduce harmonic and mains interference.
- RS232 and RS485 communication ports, optional SNMP card and optional dry contact interface for remote monitoring.
Technical Parameters
