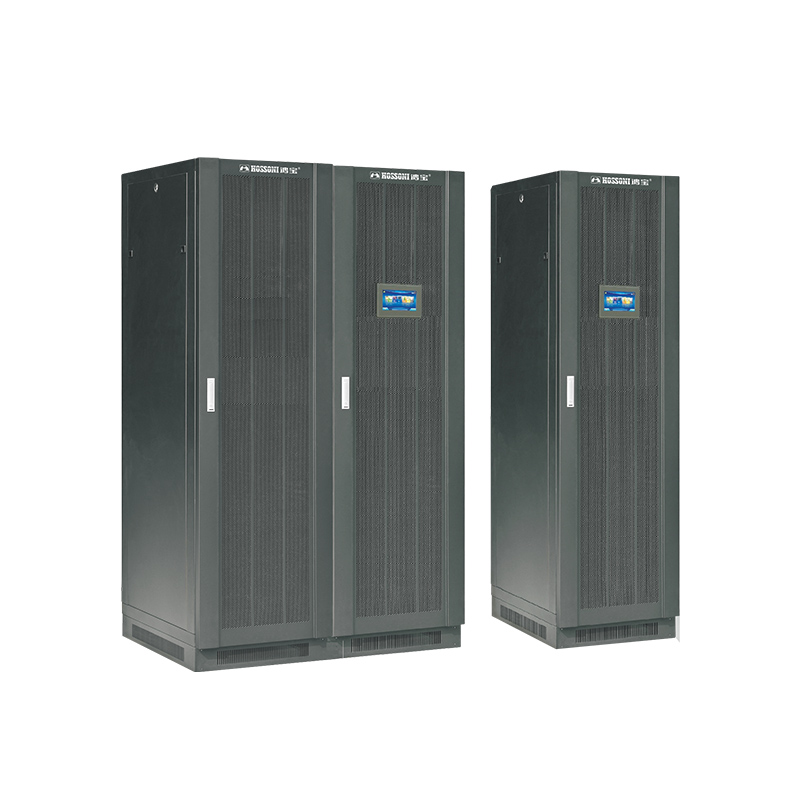

HBM Series is a modular UPS series with digital control, modular architecture and N+X parallel redundancy. It is designed for flexible configuration and staged investment, with commercial 30-300kW and industrial 50-600kW catalog coverage, and parallel systems supporting higher total power capacity.
Features
- Digital control architecture with high system stability, self-protection and fault diagnosis capability.
- Three-level technology with whole-machine efficiency up to 96%.
- High power density design with 50kW single module size of 440 x 620 x 130mm.
- Output can connect to fully unbalanced loads while input current remains three-phase balanced.
- N+X parallel redundancy design with high system availability and MTBF above 250,000 hours.
- Hot-swappable modular design with 1 to 12 modules in parallel and maximum power up to 600kW.
- Cabinet LCD touch screen and module LED indicators display operating status, warnings and faults.
- Configurable charging current and intelligent two-stage or three-stage charging method.
- Optional isolation transformer, distribution board, SNMP card and relay dry contact card.
- 19-inch standard cabinet design with optional external battery quantity.
Technical Parameters
