HBC-DFP HBC-P Square Wave Inverter

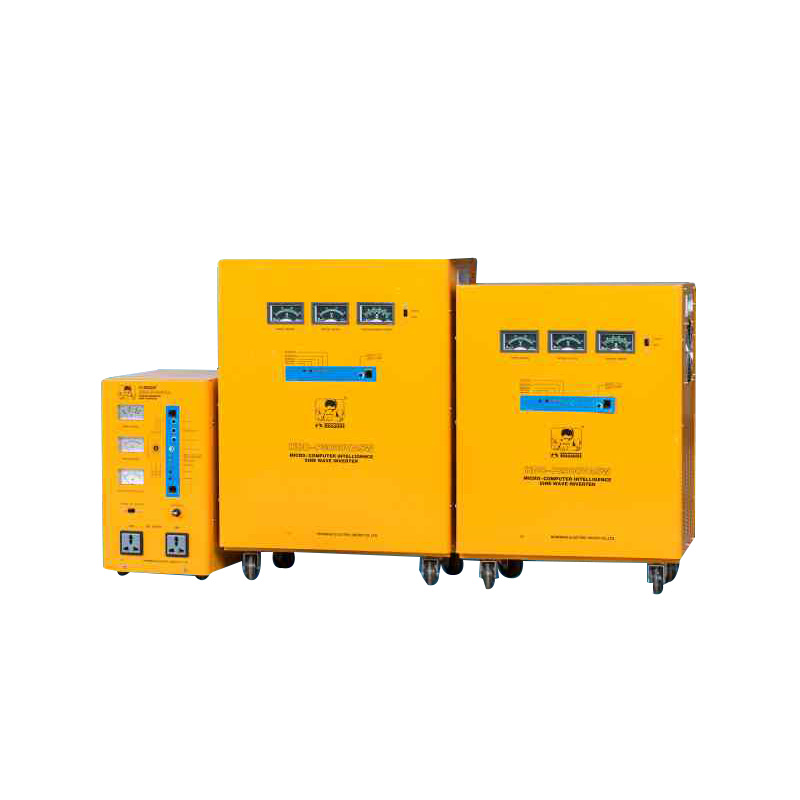

HBC-DFP HBC-P Square Wave Inverter Main Photo

Description

The HBC-DFP HBC-P Square Wave Inverter is a microcomputer controlled DC-AC inverter with a built-in high-power synchronous rectification charger. When connected to the power grid or a generator, it charges the battery while supplying AC loads through the inverter; when AC power is interrupted, it automatically transfers to battery power for backup output.

Applications

Suitable for emergency power use in vehicles, vessels, solar power systems, wind power systems, off-grid areas, power tools, fluorescent lights, TVs, microwave ovens, computers and other electrical appliances.

Performance

  • Input AC voltage: 220V ±10%.
  • Output AC voltage: 220V ±10% effective value.
  • Output frequency: 50Hz ±0.5%.
  • Output waveform: modified sine wave.
  • Waveform distortion rate: <5%.
  • Energy conversion rate: ≥85%.
  • Switching time: ≤15ms.
  • External battery support.
