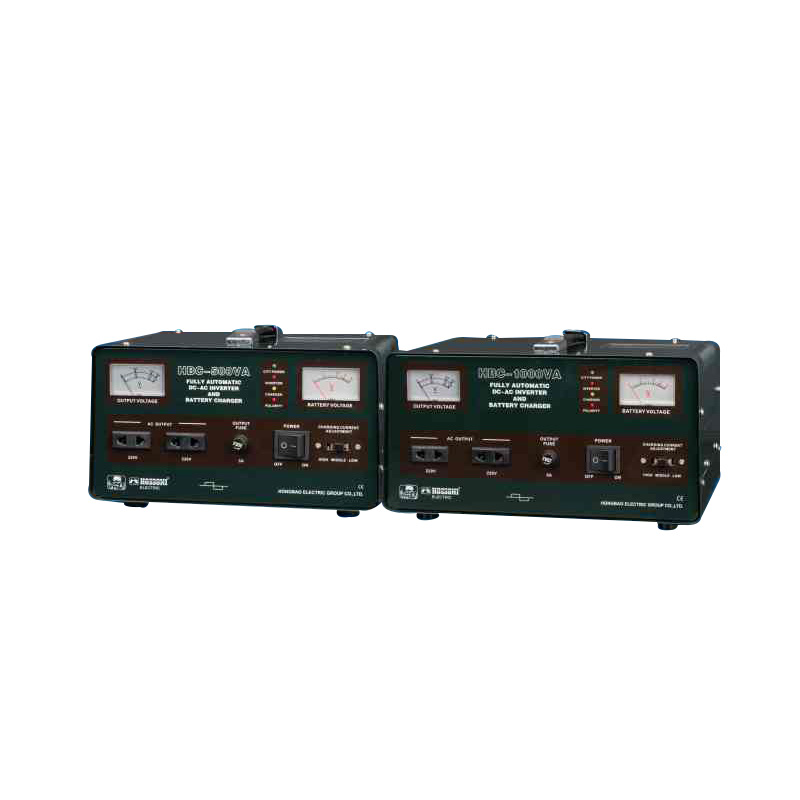

HBC-DFA HBC Full Automatic Inverter

The HBC-DFA HBC Full Automatic Inverter is an emergency uninterrupted power supply designed to charge the battery automatically when mains power is available and switch to battery-powered AC output during an outage. It uses PWM control and a high-power MOSFET driver, with practical protection and stable output for unattended backup operation.

Applications

Suitable for computer systems, communication systems, alarm systems, hospitals, shops, homes, lighting and other locations that require backup power.

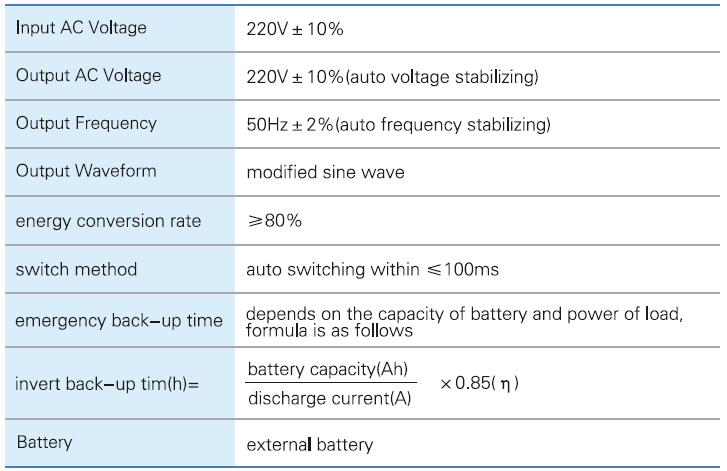

Performance

• Input AC voltage: 220V ±10%.
• Output AC voltage: 220V ±10% with automatic voltage stabilizing.
• Output frequency: 50Hz ±2% with automatic frequency stabilizing.
• Output waveform: modified sine wave.
• Energy conversion rate: ≥80%.
• Automatic switching within ≤100ms.
• External battery support.
