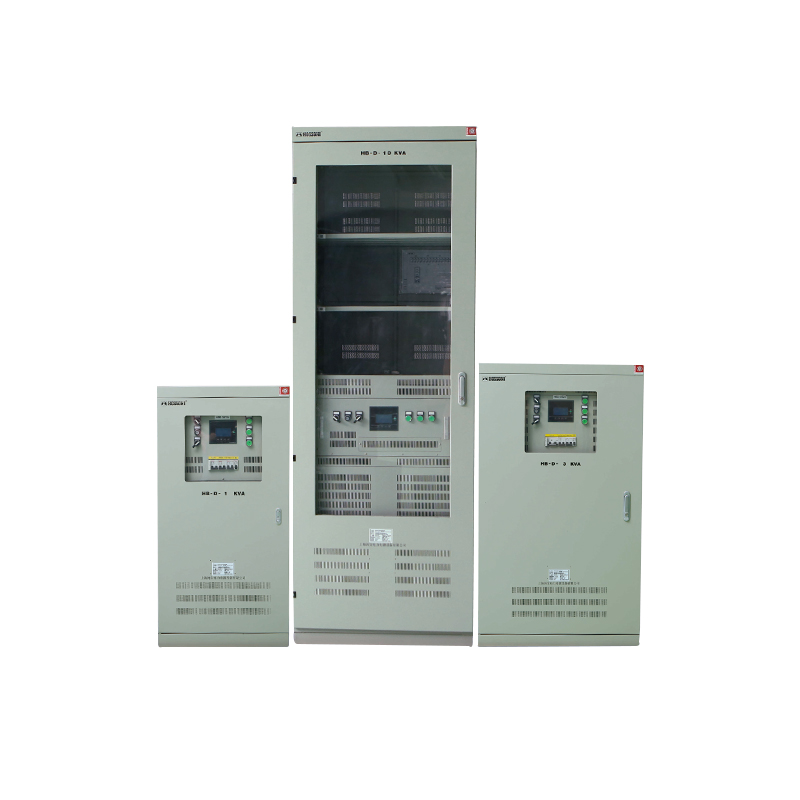

HB-D Single Phase Emergency Lighting Power Supply

HB-D Single Phase Emergency Lighting Power Supply is an EPS unit for centralized emergency lighting power in high-rise buildings, airports, telecom rooms, hospitals and important venues.

Applications

The series provides emergency power for evacuation lighting and fire rescue lighting, including lighting fixtures such as metal halide lamps and sodium lamps during fire or other emergency conditions.

Product Overview

The system is developed for fire emergency lighting power applications according to GB 17945-2010 requirements. It uses high-speed 32-bit DSP digital control and IGBT inverter technology for stable operation, easy maintenance and reliable expansion.

Features

• DSP full-digital control for faster response.
• Sixth-generation IGBT inverter technology for stable performance.
• Sine-wave AC output in emergency mode, with voltage and frequency stabilization.
• Fire linkage, computer monitoring and fire control center operation support.
• Fully isolated output for safer and more reliable operation.
• Large LCD display for human-machine interaction.
• Modular design for easier installation and maintenance.
• Fast emergency transfer, with switching time less than 0.25s; special requirements can be less than 0.01s or use online mode.
• Maintenance-free battery cycle life of 300 to 500 cycles with advanced charge and discharge management.
• Input/output over-voltage and under-voltage protection, input surge protection, output overload, short-circuit protection and temperature protection.

Specification Range

Technical Parameters
