The SJM Series is a Hall sensor range for detecting magnetic targets in position and motion-sensing applications. The models share a 10mm detection distance and magnetic target reference, while offering different body formats for installation.
Common Parameters
| Sensor type | Hall sensor for magnetic target detection |
|---|
| Supply voltage | DC6-36V for DC NPN, PNP and 2-wire types; AC90-250V for AC type |
|---|
| Operating current | ≤200mA |
|---|
| Residual voltage | ≤1.5V for DC NPN/PNP type; ≤3V for DC 2-wire type; ≤7V for AC 2-wire type |
|---|
| Protection circuit | Surge absorption, overcurrent and polarity protection |
|---|
| Indicator | Red action indicator |
|---|
| Standard test object | Permanent magnet, φ12×2mm |
|---|
| Operating temperature | -25°C to 70°C, no icing or condensation |
|---|
| Storage temperature | -40°C to 85°C, no icing or condensation |
|---|
| Humidity | 35-95%, no condensation |
|---|
| Housing material | Nickel-plated brass |
|---|

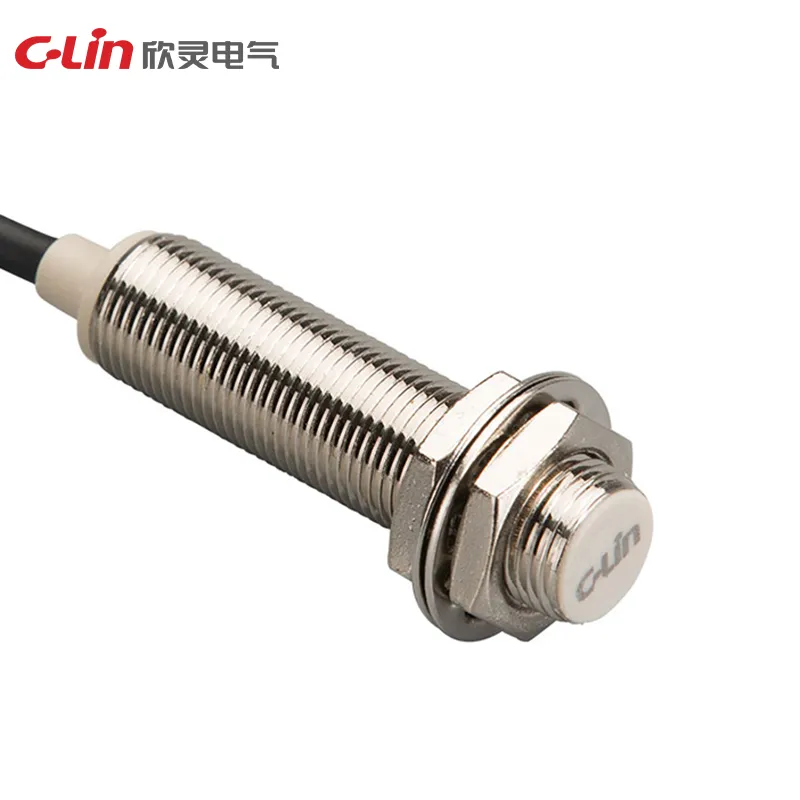

SJM
| Detection distance | 10mm |
|---|
| Setting distance | 0-8mm |
|---|

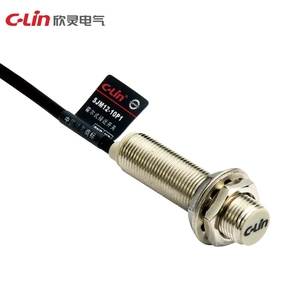

SJM12
| Detection distance | 10mm |
|---|
| Setting distance | 0-8mm |
|---|

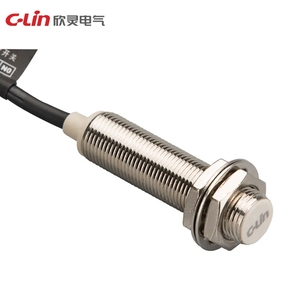

SJM18
| Detection distance | 10mm |
|---|
| Setting distance | 0-8mm |
|---|
