H6B Hoods and Housings

Description

H6B housing selection

Choose the housing mounting style, cable direction and locking layout before selecting the entry thread. Low and high profiles, covered bases and cable coupling housings are available within the H6B aluminium platform. Match the mating part to the selected locking arrangement; C versions use their own lever and peg layout.

ModelConfigurationEntry thread options

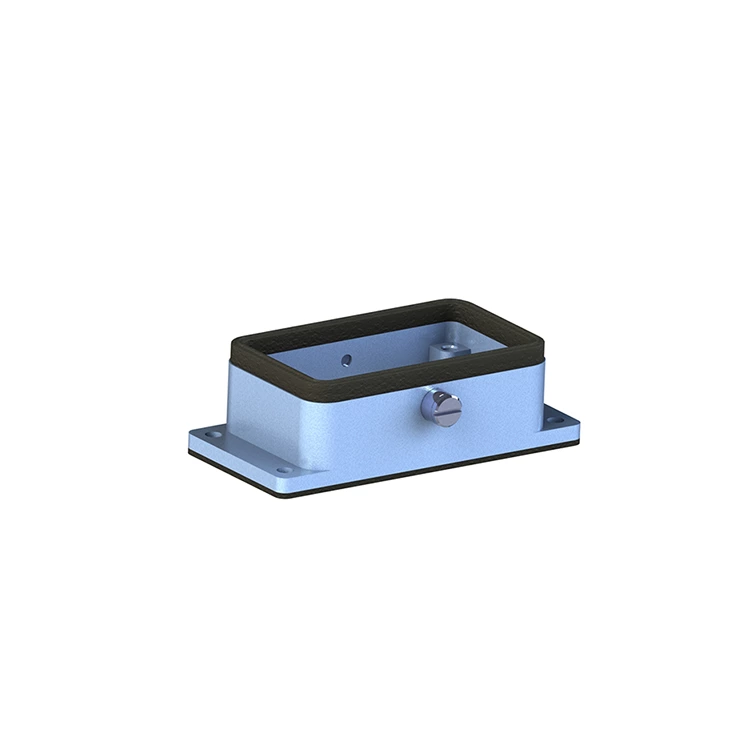

H6B-ST-2B/CBulkhead base with C locking pegsNo cable entry
H6B-SKH-1L/C-M32High side entry hood with C single leverM32
H6B-DJK-1L-M20Top entry cable coupling housing, single leverM20, PG13.5, PG16
H6B-DJKH-1L-M32High top entry cable coupling housing, single leverM32
H6B-SG-1L-PG16Surface base, single leverM20, 2M20, M25, 2M25, PG16, 2PG16
H6B-SG-CV-1L-PG16Surface base with cover, single leverM20, 2M20, M25, PG16, 2PG16
H6B-SGH-1L-M32High surface base, single leverM25, 2M25, M32, 2M32, PG21, 2PG21, PG29, 2PG29
H6B-SGH-CV-1L-M32High surface base with cover, single leverM25, 2M25, M32, 2M32, PG21, 2PG21, PG29, 2PG29
H6B-SK-2B-M20Low side entry hood, two locking pegsM20, PG13.5, PG16
H6B-SKH-2B-M32High side entry hood, two locking pegsM25, M32, PG21
H6B-ST-1LBulkhead base, single leverNo cable entry
H6B-ST-CV-1LBulkhead base with cover, single leverNo cable entry
H6B-TK-2B-M20Low top entry hood, two locking pegsM20, PG13.5, PG16
H6B-TK-1L-M20Low top entry hood, single leverM20
H6B-TKH-1L-M32High top entry hood, single leverM32; M20 version shown in the reference drawing
H6B-TKH-2B-M32High top entry hood, two locking pegsM25, M32, PG21

A prefix of 2 indicates two entries of the stated thread size. Select the gland and cable seal for the actual entry thread and cable diameter.

Materials and protection

PropertySpecification
Housing bodyDie-cast aluminium
Finish and colourPowder coated, grey RAL7037
Lever arrangementElastic metal pressing lever; stainless steel locking elements
SealNBR
Limiting temperatures-40°C to +125°C
Nonmetallic component flammabilityUL94V0
ProtectionIP65 to EN60529 for the coupled and locked connector

Mounting dimensions

BaseFootprintMounting hole patternPanel opening or hole detail
H6B-ST-2B/C80×43.5mm70×32mm48×35mm panel opening; Ø4.50mm panel holes; Ø4.4mm flange holes
H6B-ST-1L; H6B-ST-CV-1L80×43.30mm70×32mm48×35mm panel opening; Ø4.50mm holes
H6B-SG-1L; H6B-SG-CV-1L82×52mm70×40mmØ5.50mm mounting holes
H6B-SGH-1L82×57mm70×45mmØ3.79mm mounting holes; 74mm body height
H6B-SGH-CV-1L82×57mm70×45mmØ5.50mm mounting holes; 74mm body height
Hood or coupling housingSelected outline dimensions
H6B-SKH-1L/C60×43mm body at mating end; 72mm height
H6B-DJK-1L60×43mm body; 53.30mm indicated housing height
H6B-DJKH-1L60×43mm body at mating end; 72mm indicated housing height
H6B-SK-2B60×43mm body; 50.55mm height including side entry projection
H6B-SKH-2B60×43mm body at mating end; 72mm height
H6B-TK-2B60×43mm body; 53mm height including entry neck
H6B-TK-1L-M2059.80×43mm body; 53.30mm height
H6B-TKH-1L, M20 reference version59.80×43.30mm body at mating end; 71.80mm height
H6B-TKH-2B60×43mm body at mating end; 72mm height

Allow additional space for lever movement, cover swing and cable routing. The H6B-TKH-1L attachment depicts the M20 version; use the M32 product option when an M32 entry is required. Consult the individual drawings for flange thicknesses, projections and clearance envelopes.
