H48B enclosures combine two-peg cable hoods with matching single-lever bases. Choose top or side cable entry and a surface-mounted or bulkhead-mounted base. CV versions include a hinged protective cover. Select the required insert and cable gland for the application.
| Property | Specification |
|---|---|
| Housing material | Die-cast aluminium |
| Finish and colour | Powder coated, RAL 7037 grey |
| Lever type | Metal elastic pressing lever |
| Lever material | Stainless steel |
| Seal | NBR |
| Limiting temperature | -40°C to +125°C |
| Flammability | UL 94 V0 for applicable non-metallic components |
| Protection | IP65 according to EN 60529 when correctly sealed, coupled and locked |
| Model | Configuration | Thread options | Body dimensions | Drawing designation |
|---|---|---|---|---|
| H48B-SKH-2B-PG29 | Side entry, two pegs | M32, M40, M50, PG29, PG36, PG42 | 132.50×90mm, 107.50mm high | H48B-SK-2B-PG36 |
| H48B-TKH-2B-PG29 | Top entry, two pegs | M32, M40, M50, PG29, PG36, PG42 | 132×89.50mm, 108.50mm high | H48B-TK-2B-PG36 |
The hood dimensions exclude projecting locking pegs and cable glands. The PG36 drawings identify the same respective hood configurations with a different entry-thread option.
| Model | Mounting and cover | Lock | Thread options |
|---|---|---|---|
| H48B-ST-1L | Bulkhead base | Single lever | Panel opening |

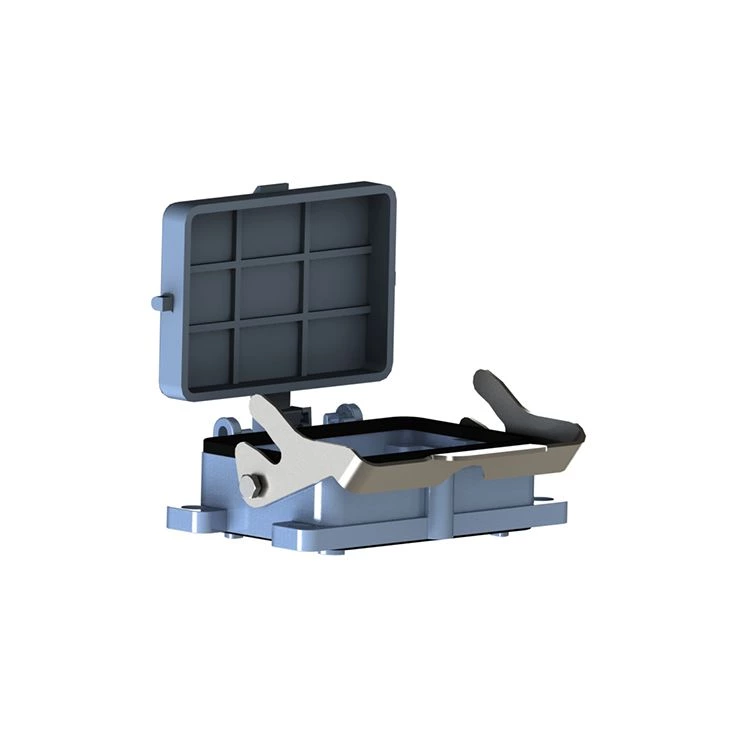

| H48B-ST-CV-1L | Bulkhead base with hinged cover | Single lever | Panel opening |
| H48B-SG-CV-1L-PG36 | Surface base with hinged cover | Single lever | M40, 2M40, PG29, 2PG29, PG36, 2PG36 |
The bulkhead bases have a 165×113.70mm flange, 148×70mm mounting-hole centres, 6.40mm flange holes and a 117×81mm panel cutout. The body height is 40mm. Allow a further 38.50mm beyond the dimensioned flange edge for the lever and 12mm at the opposite side for the open cover on the CV version.
The covered surface base has a 141×120mm footprint, 111×106mm mounting-hole centres and a 99mm body height. Allow 31mm beyond the dimensioned base edge for the lever and 12mm on the cover side. Thread codes beginning with 2 indicate two cable entries of the named size.
Match the insert, enclosure interface and locking system before assembly. Check cable bend space, gland clearance and the full lever and cover travel against the individual drawing. Electrical ratings and contact counts depend on the installed insert.
