Select the cover by the locking features of the mating hood or housing. Both versions include a retaining tether.
| Model | Locking arrangement |
|---|---|

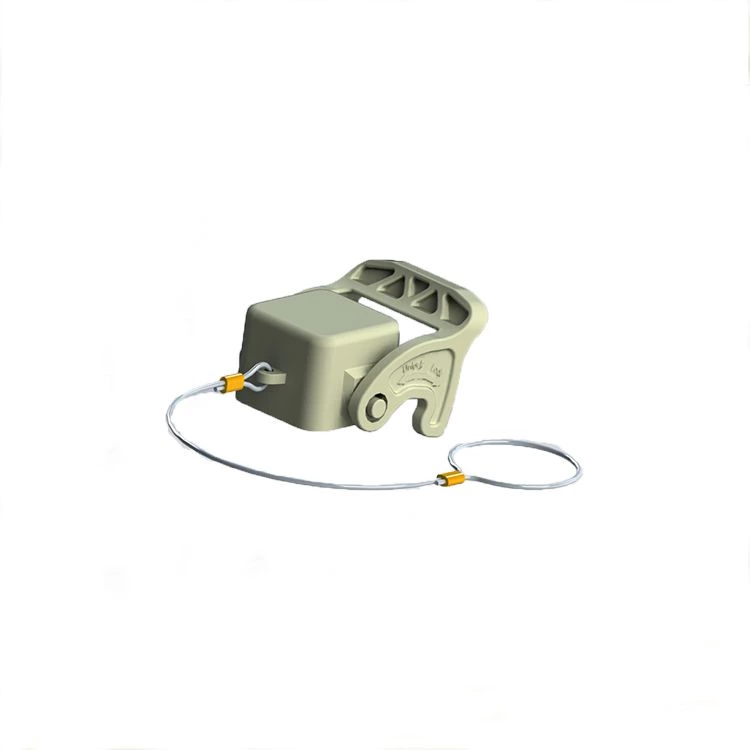

| H3A.P-CV-1L | One plastic locking lever |
| H3A.P-CV-2B | Two pegs engaged by the mating locking lever |
| Property | Value |
|---|---|
| Cover material | Polycarbonate |
| Colour | Light grey, RAL7032 |
| Lever mechanism | Elastic plastic pressing lever |
| Lever material | Polyamide |
| Seal material | NBR |
| Limiting temperatures | -40°C to +125°C |
| Flammability according to UL94 | V0 |
| Degree of protection according to EN60529 | IP65 when correctly mated and locked |
The lever material applies to the lever-equipped version. Check that the cover seats fully on the matching interface and that the locking mechanism engages.
