H32B hoods and housings provide a broad rectangular interface with top-entry or side-entry cable routing. Choose a cable coupling housing, surface base or bulkhead base, then match the locking arrangement and thread to the mating assembly. Two-peg and four-peg hoods engage their corresponding lever systems.
| Property | Specification |
|---|---|
| Housing material | Die-cast aluminium |
| Colour and finish | RAL 7037 grey, powder coated |
| Lever type | Elastic pressing metal lever, where fitted |
| Lever material | Stainless steel |
| Seal | NBR |
| Limiting temperature | -40°C to +125°C |
| Flammability | UL 94 V0 for applicable non-metallic components |
| Protection | IP65 according to EN 60529 when correctly sealed, coupled and locked |
| CV base option | Hinged thermoplastic protective cover |
| Model | Entry and locking | Thread options | Drawing designation |
|---|---|---|---|
| H32B-DJKH-2L-PG29 | Top-entry cable coupling housing, two levers | M32, M40, M50, PG29, PG36, PG42 | H32B-DJK-2L/S-M32 |
| H32B-SKH-2B-PG29 | Side-entry hood, two pegs | M32, M40, M50, PG29, PG36, PG42 | H32B-SK-2B-M32 |
| H32B-SKH-4B-M32 | Side-entry hood, four pegs | M32 | H32B-SKH-4B-M32 |
| H32B-TK-2B-PG29 | Top-entry hood, two pegs | M32, M40, M50, PG29, PG36, PG42 | H32B-TK-2B-M32 |
| H32B-TKH-4B-PG29 | Top-entry hood, four pegs | M32, M40, M50, PG29, PG36, PG42 | H32B-TK-4B-M32 |
The DJK cable coupling body measures 94×82.50mm with a 97.50mm height and 98.10mm width across the locks. The SK two-peg hood and TK two-peg and four-peg hoods have a 94×82.50mm body with 94mm height. Cable glands, locking projections and operating clearance must be considered separately.
| Model | Configuration | Thread options | Base height |
|---|---|---|---|
| H32B-SG-2L-M32 | Side entry, two levers | M32, 2M32, M40, 2M40, PG29, 2PG29, PG36, 2PG36 | 90.60mm |
| H32B-SG-CV-1L-M32 | Side entry, single lever and cover | M32, 2M32, M40, 2M40, PG29, 2PG29, PG36, 2PG36 | 90.50mm |
Both surface bases have a 125×84mm mounting footprint, 112×67mm mounting-hole centres and 5.50mm mounting holes. Thread options beginning with 2 specify two entries of the named size. The covered base requires space for the opened cover and lever.
| Model | Locking and cover | Flange-hole diameter | Body height |
|---|---|---|---|

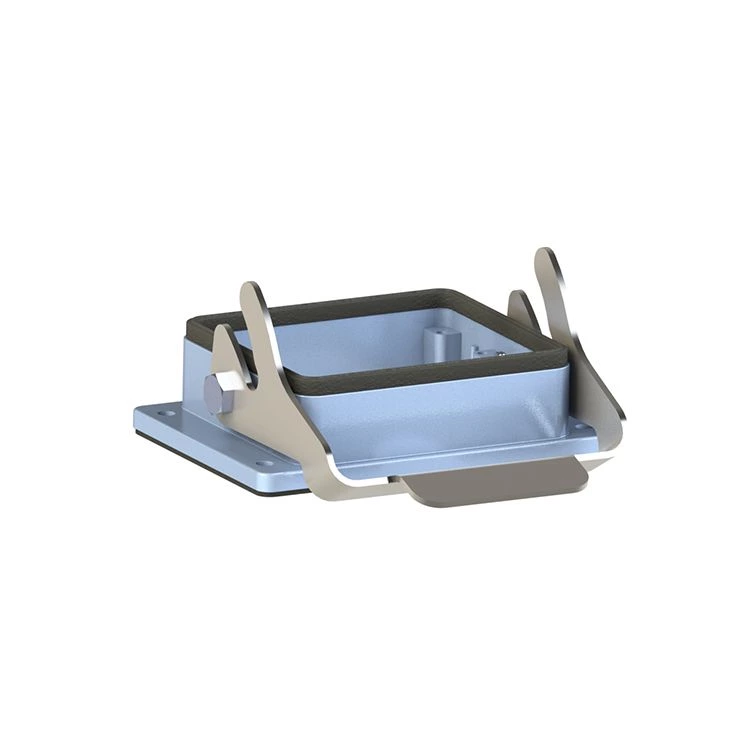

| H32B-ST-1L | Single lever | 5.50mm | 35mm |
| H32B-ST-2L | Two levers | 6mm | 35mm |
| H32B-ST-CV-1L | Single lever and hinged cover | 5.50mm | 35mm |
The bulkhead bases have a 124×89mm flange and mounting-hole centres of 110×65mm. The panel cutout is 86×71mm with four 5.50mm panel holes. The double-lever base has 6mm flange clearance holes; these are distinct from the panel holes. Single-lever bases require 47.50mm operating space beyond the dimensioned flange edge, and the covered version has a 25mm open-cover projection on the opposite side.
Match the selected insert and mating enclosure with the appropriate locking system. Choose the cable gland for the required entry thread and cable diameter. Electrical ratings and contact counts depend on the insert. Use the individual configuration drawing to plan mounting and operating clearance.
