H2MP-002 Two-Position Pneumatic Module

H2MP-002 Pneumatic Module

Description

H2MP-002 provides two positions for pneumatic contacts within a modular connector assembly. The contacts occupy diagonally opposed circular openings in an insulating carrier.

Carrier specifications

PropertySpecification
ModelSO-H2MP-002-M
Pneumatic contact positions2
Outline across locating features34.2mm × 29.4mm
Depth24.7mm
ConstructionInsulating carrier for separate metal pneumatic contacts
Insulation resistance≥1010Ω
Temperature range-40°C to +85°C
Flammability according to UL 94V0
Mechanical life≥500 mating cycles

Pneumatic contact selection

Select the male and female contacts for the required mating arrangement and tube connection. Match the contact mounting shape to the carrier and use the contact specifications to determine tube size and pressure limits.

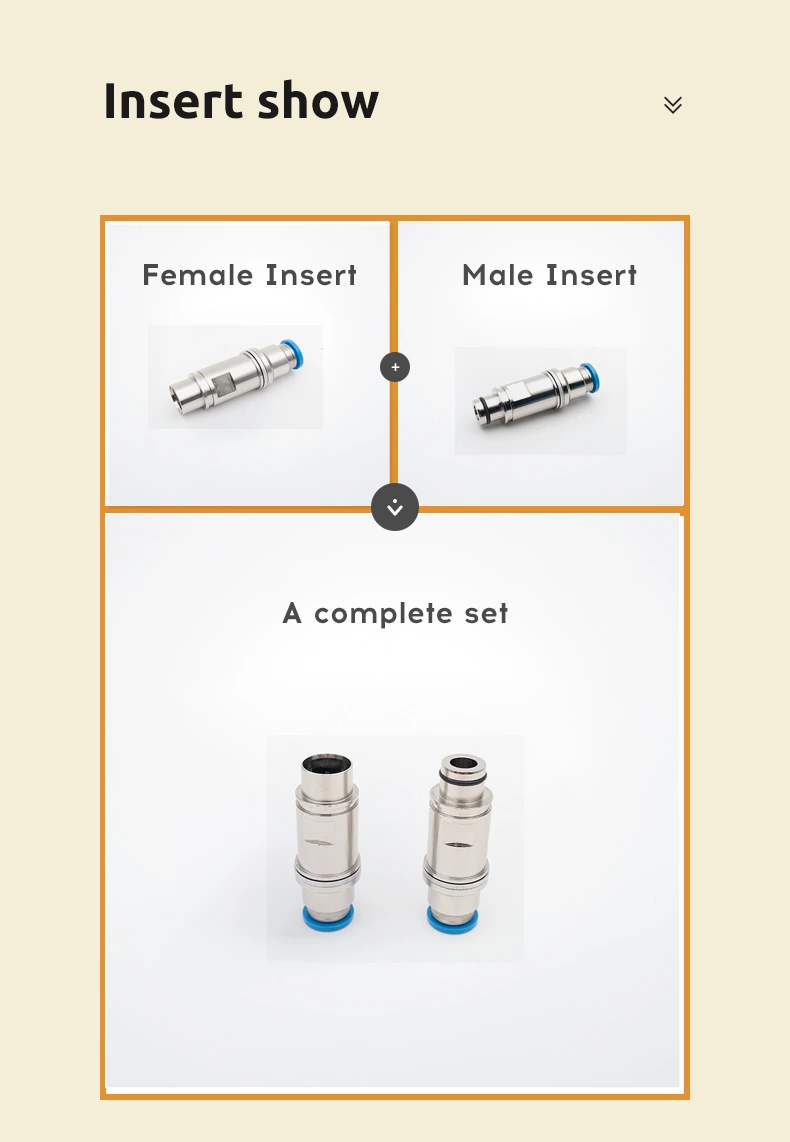

Male and female metal pneumatic contacts
Male and female pneumatic contacts provide the mating air connection.

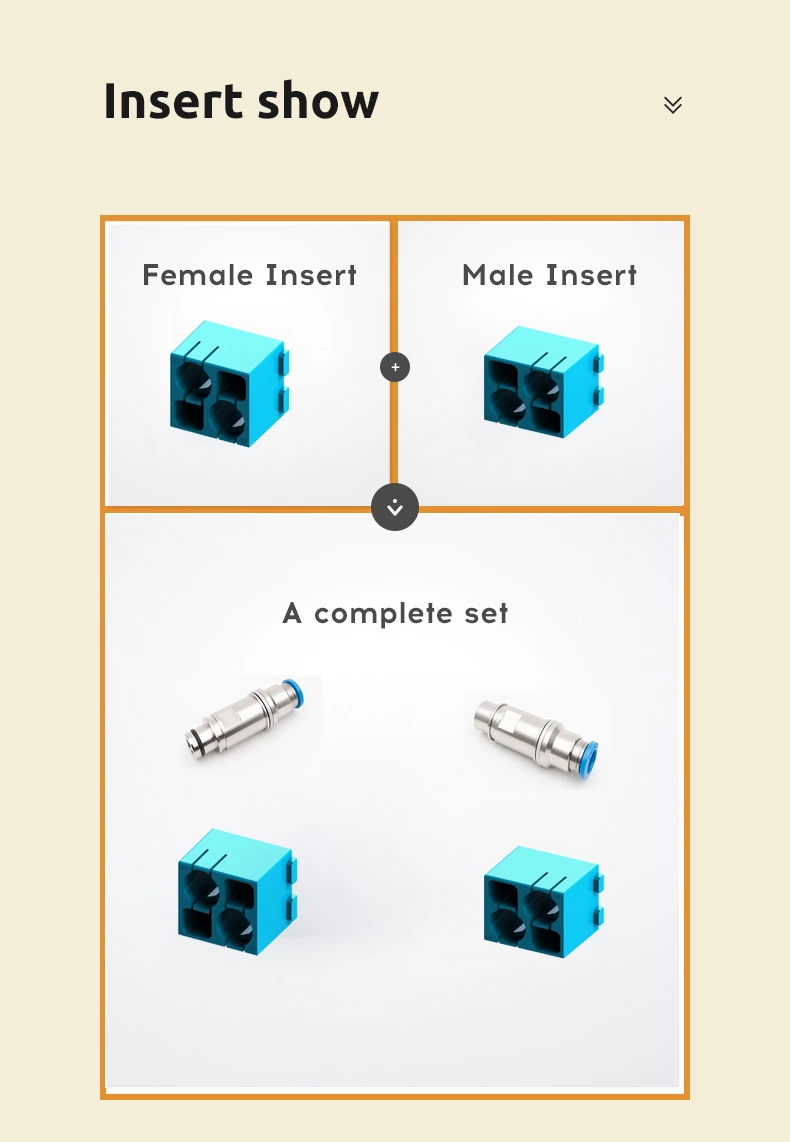

Two-position carriers and pneumatic contacts
The carrier and its pneumatic contacts are separate components used on the opposing mating sides.
