H2M compact modular enclosures offer a single-lever bulkhead base, a two-peg carrier and cable hoods with top or side entry. Select the appropriate module, mating carrier and locking arrangement. A separate H2M protective cover is available for the matching housing interface.
| Property | Specification |
|---|---|
| Housing material | Die-cast aluminium |
| Finish and colour | Powder coated, grey; RAL 7037 on the bulkhead base |
| Locking arrangement | Plastic lever or screw locking, according to the selected assembly |
| Plastic locking element | PC |
| Seal | NBR |
| Limiting temperature | -40°C to +125°C |
| Flammability | UL 94 V0 for applicable non-metallic components |
| Protection | IP65 according to EN 60529 when correctly sealed, coupled and locked |
| Model | Configuration | Cable route | Drawing designation |
|---|---|---|---|

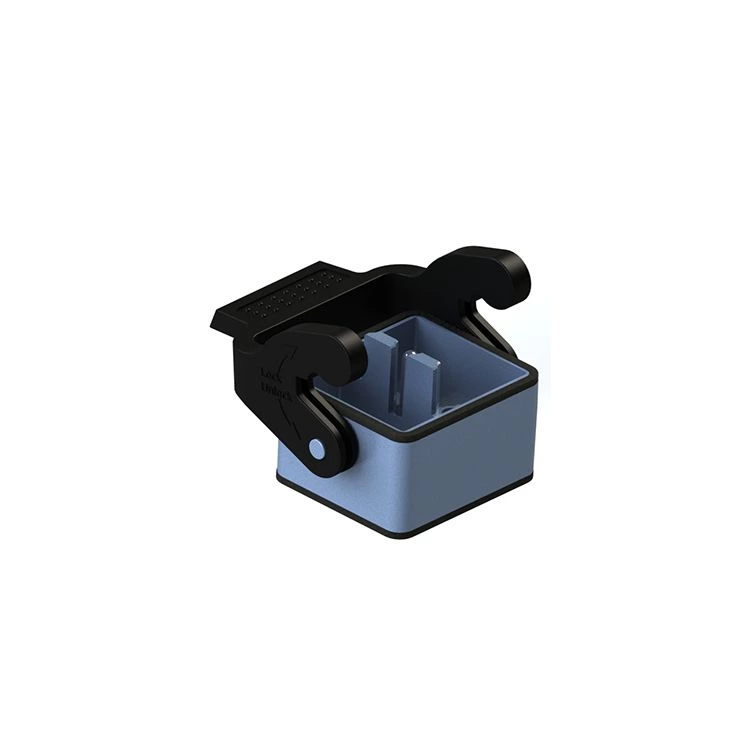

| H2M-ST-1L/P | Bulkhead base with one PC lever | Through panel | H2M-ST-1L |
| H2M-ST-2B | Carrier with two locking pegs | Through bottom opening | H2M-ST-2B |
| H2M-SK-M25 | Side-entry cable hood | M25 side entry | — |
| H2M-TK-M25 | Top-entry cable hood | M25 top entry | H2M-TK |
| Component | Dimension | Feature |
|---|---|---|
| H2M-ST-1L/P | 39mm | Body depth along the lever travel axis |
| H2M-ST-1L/P | 57mm | Overall width across the lever structure |
| H2M-ST-1L/P | 26mm | Body height and additional lever projection, each on its indicated axis |
| H2M-ST-2B | 39mm deep, 26mm high | Body dimensions |
| H2M-ST-2B | 57mm | Overall width across pegs |
| H2M-ST-2B | 8.30mm | Lower mounting projection |
| H2M-TK-M25 | 44×39×41mm | Hood body dimensions |
The bulkhead-base mounting drawing specifies a 38.20×31mm stepped opening, a 19mm centre opening height, 8.30mm central tab width and two M4 positions spaced 25.80mm apart. Follow the complete outline in the drawing; a plain rectangular cutout does not reproduce these mounting features.
Allow clearance for the locking mechanism, cable gland and cable bend. Match the gland to the selected M25 entry and cable diameter. Electrical ratings and contact counts depend on the installed module.
