H24B Hoods and Housings

Description

H24B connector enclosures

Select H24B hoods and housings by mounting format, cable entry, body height and locking arrangement. The range includes cable coupling housings, surface-mounted bases and bulkhead bases. CV versions have a hinged protective cover. The C lever and peg versions have a distinct locking arrangement that must be matched when selecting mating parts.

Materials and protection

PropertySpecification
Housing materialDie-cast aluminium
Finish and colourPowder coated, RAL 7037 grey
Lever type and materialElastic pressing metal lever, stainless steel, where fitted
Housing sealNBR
Limiting temperature-40°C to +125°C
FlammabilityUL 94 V0 for applicable non-metallic components
Degree of protectionIP65 according to EN 60529 for the correctly sealed, coupled and locked connector
Covered versionsHinged thermoplastic cover on CV bases

Top-entry and side-entry hoods

Standard side-entry hoods have a 120×43mm main body and 62.50mm body height, excluding the raised entry boss. Standard top-entry hoods have a 120×43mm body and 69mm height including the entry boss. High hoods have a 76mm body height. Allow additional space for locking pegs, open levers and cable glands.

ModelEntry and constructionLocking arrangementThread options
H24B-SKH-1L/C-M32Side entry, highSingle C leverM32
H24B-SK-2B-PG21Side entry, standardTwo pegsPG21, M25, M32
H24B-SK-2L-PG21Side entry, standardTwo leversPG21, M25
H24B-SK-4B-PG21Side entry, standardFour pegsPG21, M25, M32
H24B-SKH-2B-M32Side entry, highTwo pegsPG21, PG29, M32, M40
H24B-SKH-2L-M32Side entry, highTwo leversPG21, PG29, M32, M40
H24B-SKH-4B-M32Side entry, highFour pegsPG21, PG29, M32, M40
H24B-TK-2B-PG21Top entry, standardTwo pegsPG21, M25
H24B-TK-2L-PG21Top entry, standardTwo leversPG21, M25
H24B-TK-4B-PG21Top entry, standardFour pegsPG21, M25
H24B-TKH-2B-M32Top entry, highTwo pegsPG21, PG29, M32, M40
H24B-TKH-2L-M32Top entry, highTwo leversPG21, PG29, M32, M40
H24B-TKH-4B-M32Top entry, highFour pegsPG21, PG29, M32, M40

The C lever hood is 120mm long, with a 43mm lower body width, 45mm upper width and 52mm width across the lever. Other high hoods have a 120×43mm body. Double-lever hoods measure 58.50mm across the locking arrangement. Four-peg standard hoods and high top-entry hoods measure 57mm across pegs; the high side-entry four-peg version measures 56mm.

Cable coupling housings

These housings have a sealing face for cable-to-cable assemblies and a top cable entry. Their bodies measure 120×43mm. Single-lever versions require clearance for lever movement; double-lever versions measure 58.50mm across the locks.

ModelConstructionBody heightThread options
H24B-DJK-1L-PG21Standard, single lever72mmPG21, M25
H24B-DJK-2L-PG21Standard, two levers72mmPG21, M25
H24B-DJKH-1L-M32High, single lever79mmPG21, PG29, M32, M40
H24B-DJKH-2L-M32High, two levers79mmPG21, PG29, M32, M40

Surface-mounted housings

Surface housings use side cable entries. A prefix of 2 in a thread option indicates two entries of that size, such as 2M25 or 2PG21. The standard SG versions and high SGH versions retain their individual mounting dimensions.

ModelConstruction and lockingThread options
H24B-SG-1L-PG21Standard, single leverPG21, 2PG21, M25, 2M25
H24B-SG-2L-PG21Standard, two leversPG21, 2PG21, M25, 2M25
H24B-SG-CV-1L-PG21Standard, single lever and coverPG21, 2PG21, M25, 2M25
H24B-SG-CV-4B-PG21Standard, four pegs and coverPG21, 2PG21, M25, 2M25
H24B-SGH-1L-M32High, single leverM32
H24B-SGH-2L-M32High, two leversM32, 2M32, PG21, 2PG21, PG29, 2PG29
H24B-SGH-CV-1L-M32High, single lever and coverM32, 2M32, PG21, 2PG21, PG29, 2PG29
H24B-SGH-CV-4B-M32High, four pegs and cover; drawing code H24B-SGH-4B-CVM32, 2M32, PG21, 2PG21, PG29, 2PG29
Base configurationMounting footprintHole centresHole diameterBase height
SG-1L144×57mm130×45mm5.50mm56.50mm
SG-2L144×57mm132×45mm4.50mm56.50mm
SG-CV-1L144×57mm132×45mm5.50mm56mm
SG-CV-4B144×57mm132×45mm5.30mm55.65mm
SGH-2L, SGH-CV-1L and SGH-CV-4B144×56mm132×45mm5.50mm81mm

Bulkhead-mounted housings

Bulkhead bases have a 140mm flange length, mounting-hole centres of 130×32mm and a 110×35mm panel opening. The panel uses four 4.50mm holes. The C version flange is 43.40mm wide; the other listed flanges are 43.50mm wide.

ModelLocking arrangementFlange-hole diameterInstallation detail

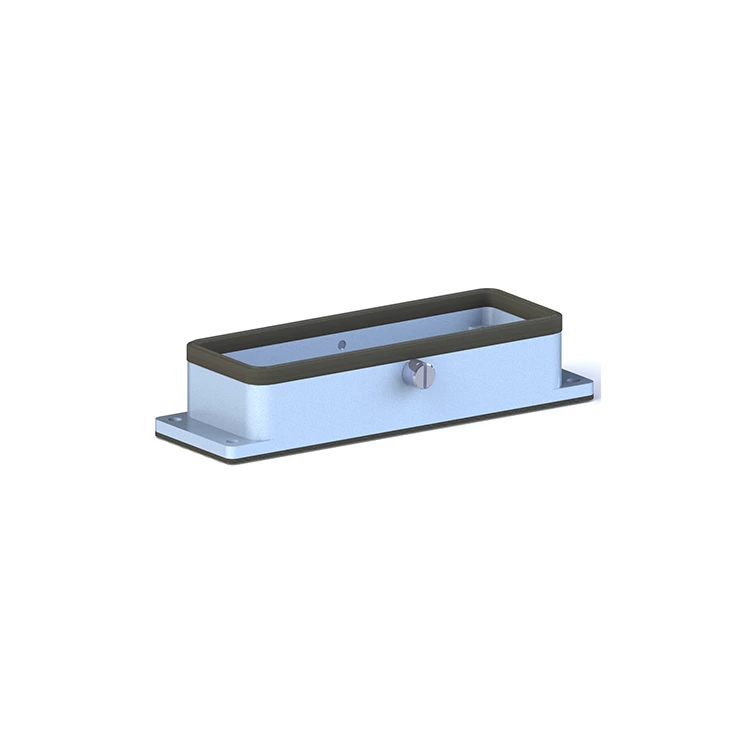

H24B-ST-2B/CTwo pegs, C arrangement4.60mm29mm body height; 56.20mm across pegs
H24B-ST-1LSingle lever4.50mmAllow clearance for lever movement
H24B-ST-2LTwo levers4.50mm30.10mm base height; 59.10mm across levers
H24B-ST-CV-1LSingle lever and cover4.50mm27.50mm cover projection beyond the flange width in the open position
H24B-ST-CV-4BFour pegs and cover; drawing code H24B-ST-4B-CV4.40mm29.10mm base height; 27.50mm open-cover projection

Assembly selection

Choose the insert, cable gland and mating housing for the complete connector. Electrical ratings and contact counts depend on the insert configuration. Check the selected model's dimensional drawing for the mounting interface, cable-entry boss and open-lock clearance.
