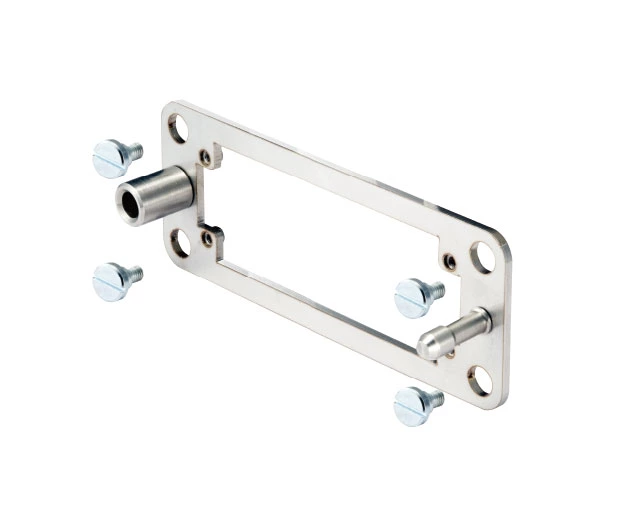

H24B-ADK provides a stainless steel docking frame for a six-module connector arrangement. Its floating mounting accommodates positional offset during docking. The delivery includes one frame and four cheese head shoulder screws for fixing the frame.
| Property | Specification |
|---|---|
| Model | H24B-ADK |
| Module capacity | 6 |
| Frame material | Stainless steel |
| Fixing screw material | Zinc-plated steel |
| Pull-in range, x-axis | ±1.5mm |
| Pull-in range, y-axis | ±1.5mm |
| Temperature range | -40°C to +125°C |
| Mechanical life | ≥500 mating cycles |
| Panel fixing pattern | 129×38mm; M5 fixing positions |
| Frame width | 55mm |
| Contact arrangement | Maximum distance at the position marked in the drawing |
|---|---|
| Electrical and fibre-optic contacts | 27mm |
| Pneumatic contacts | 26.5mm |
Use the attached drawing for the stepped panel cutout and the reference position for these distances. Install the mounting base protective earth connection separately because the docking frame uses a floating mounting system. Select the module carrier, modules and mating arrangement to suit the installation.
