H10A hoods and housings form a single-lever enclosure family. Choose a surface-mounted housing or a bulkhead-mounted base, then select the hood entry direction and cable thread. Covered bases include a thermoplastic cover.
| Model | Configuration | Specified entry | Locking features | Drawing weight |
|---|---|---|---|---|

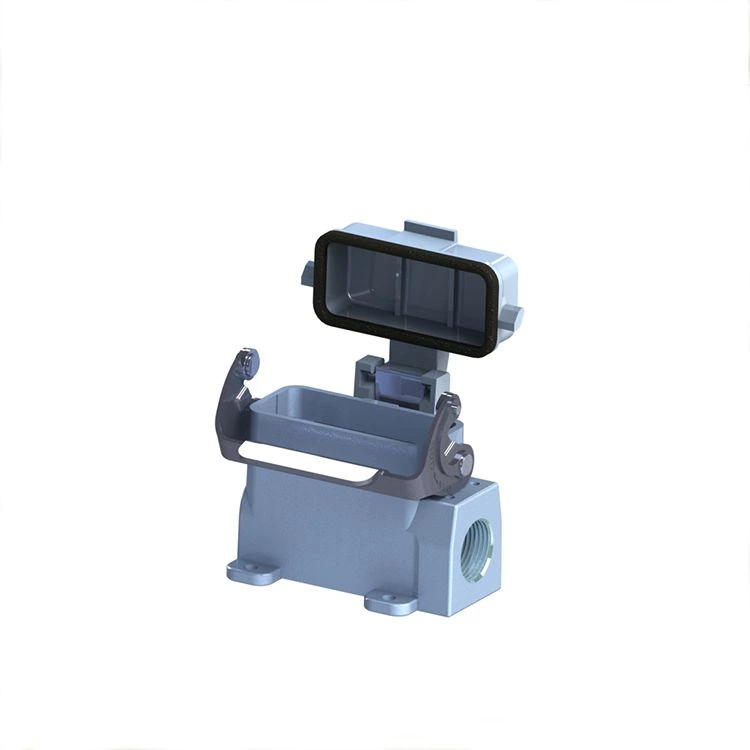

| H10A-SG-CV-1L-PG16 | Surface housing with cover | PG16 side entry | One lever | 160g |
| H10A-SG-1L-PG16 | Surface housing | PG16 side entry | One lever | 164g |
| H10A-SKH-2B-PG16 | High side-entry hood | PG16 | Two pegs | 165g |
| H10A-ST-1L | Bulkhead housing | Panel opening | One lever | 76.9g |
| H10A-ST-CV-1L | Bulkhead housing with cover | Panel opening | One lever | 105.9g |
| H10A-TKH-2B-PG16 | High top-entry hood | PG16 | Two pegs | 162g |
| Enclosure group | Thread options shown in the drawings |
|---|---|
| SG and SG-CV surface housings | M20, M25, two M20 entries, PG16, two PG16 entries or PG21 |
| SKH and TKH hoods | M25, PG16 or PG21 |
Thread sizes are separate ordering options. A two-entry version provides two threaded openings; it is not a different thread standard.
| Configuration | Mounting or outline dimensions |
|---|---|
| SG and SG-CV | 75×50mm mounting footprint; 48×40mm fixing-hole pattern; 4.5mm fixing holes; 52mm body height |
| ST and ST-CV | 57×24mm panel cutout; 70×17.50mm fixing-hole pattern; 4.5mm flange holes; 26.50mm body height |
| SKH hood | 67mm height; 63mm body length; 30mm lower width |
| TKH hood | 67mm height; 63mm body length; 29.50mm lower width |
Allow additional clearance for the locking lever and cover. Use the individual drawings for complete profiles and projections.
| Property | Value |
|---|---|
| Body | Aluminium die-cast |
| Surface | Powder coated |
| Colour | Grey, RAL7037 |
| Lever mechanism | Elastic metal pressing lever |
| Lever material | Stainless steel |
| Sealing | NBR |
| Limiting temperatures | -40°C to +125°C |
| Flammability of nonmetallic components according to UL94 | V0 |
| Degree of protection according to EN60529 | IP65 for the coupled connector |
IP65 applies with the connector correctly coupled and locked. Select the insert and cable gland to complete the enclosure arrangement.
