GYX1 Multimedia and Optical Fiber Box


Description

GYX1 multimedia and optical fiber boxes are designed for residential low-voltage wiring, smart home cabling and optical fiber distribution. The series separates multimedia box versions and optical fiber box versions while sharing a similar concealed enclosure format.

Multimedia Box Versions

ModelOverall dimensionsBox bottom size
GYX1-03A325*225*120 mm300*200*100 mm

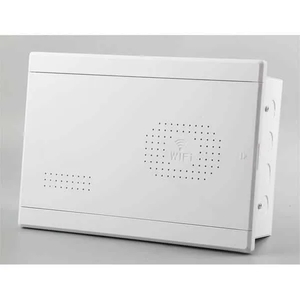

GYX1-03AX325*225*120 mm300*200*100 mm

Optical Fiber Box Versions

ModelOverall dimensionsBox bottom size

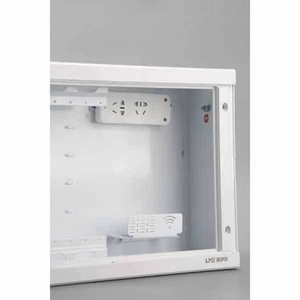

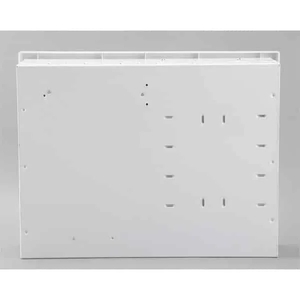

GYX1-08A325*275*140 mm300*250*120 mm
GYX1-08C375*325*140 mm350*300*120 mm
GYX1-08D425*325*140 mm400*300*120 mm

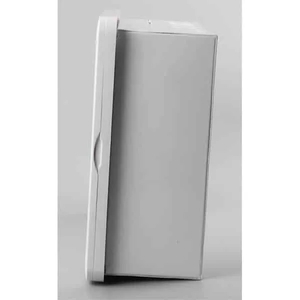

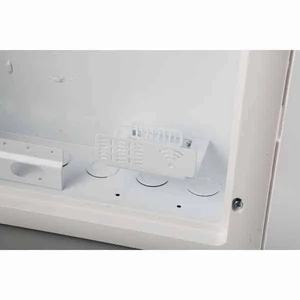

GYX1-09D425*325*140 mm400*300*120 mm

Application Notes

  • Used for structured wiring in smart home and residential low-voltage systems.
  • Optical fiber versions support fiber access and cable organization in residential installations.
  • Model selection is mainly based on box size and wiring capacity.
