GYRD9L-125 PV Auto Recloser


Description

The GYRD9L-125 photovoltaic auto recloser is a reclosing miniature circuit breaker for solar combiner box and photovoltaic distribution circuits. It is listed for AC 50 Hz lines with rated working voltage up to 400 V and rated current up to 125 A.

Model Coverage

ModelPole versionRated current range
GYRD9L-125-2P2P80-125 A

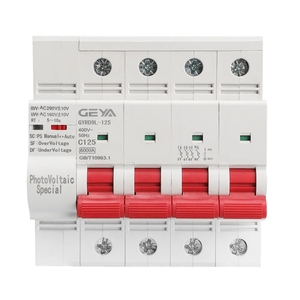

GYRD9L-125-4P4P80-125 A

Protection Functions

  • Automatic reclosing function for photovoltaic circuit operation.
  • Over-voltage and under-voltage protection are listed in the product data.
  • Loss-of-voltage related protection is listed for the PV reclosing application.
  • Designed for solar combiner box installation and maintenance requirements.

Application

The series is intended for photovoltaic combiner boxes and solar distribution circuits where automatic restoration and circuit protection are required after abnormal line conditions.
