GYR10 / GYR10N / GYR10NE RCBO Circuit Breakers


Description

The GYR10 family combines residual current protection with overload and short-circuit protection in compact 1P+N RCBO devices for residential, commercial, and light industrial distribution boards.

Model Range

ModelPositioningMain ratings
GYR10Standard 1P+N RCBO240V (230V), 6A to 50A, 6000A breaking capacity, 10mA/30mA/100mA/300mA residual operating current, Type A and Type AC

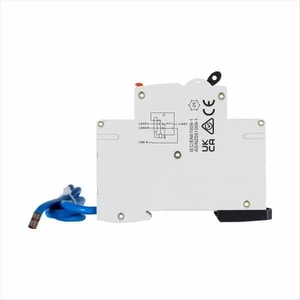

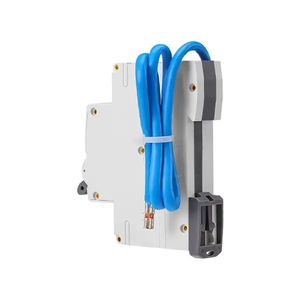

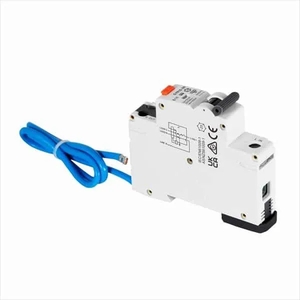

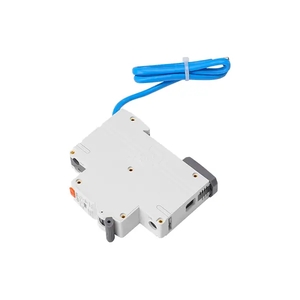

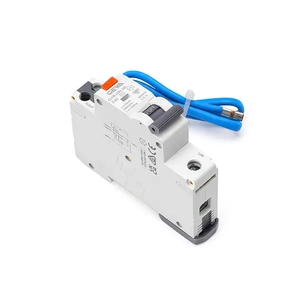

GYR10N-50Fusebox RCBO with dual-breakpoint and reversible wiring design240V (230V), 6A to 40A, 1P+N, 6000A breaking capacity, 10mA/30mA/100mA/300mA residual operating current, Type A and Type AC

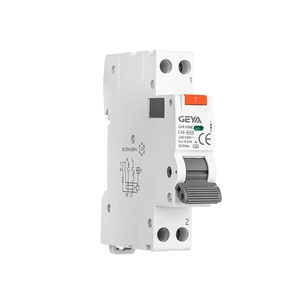

GYR10NEElectronic compact 1P+N RCBOAC 50/60Hz, rated voltage up to 240V, rated current up to 40A, 4500A/6000A rated limit short-circuit current, Type A and Type AC

Applications

  • Final circuit protection where earth leakage, overload, and short-circuit protection are required in one module.
  • Residential fuseboxes, commercial panels, high-rise building distribution, and industrial auxiliary circuits.
  • Selection by rated current, leakage sensitivity, residual current action type, and installation layout.
