GYPV-H 1500V DC PV Fuse


Description

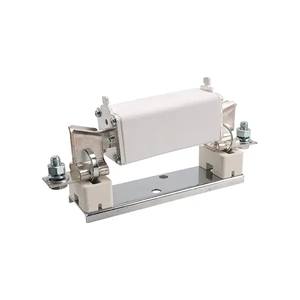

The GYPV-H photovoltaic fuse series is designed for DC protection in photovoltaic power systems. The range covers high-current 1500 V DC fuse links and matching bases for PV string and array protection.

Model Coverage

ModelListed current rangeRated voltage
GYPV-H1XL35-200 A1500 V DC

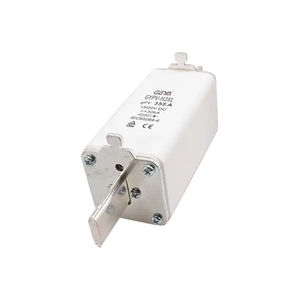

GYPV-H2XL80-400 A1500 V DC

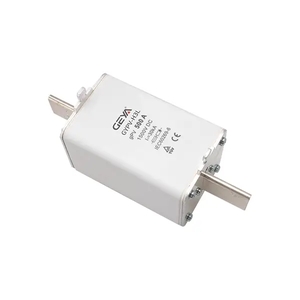

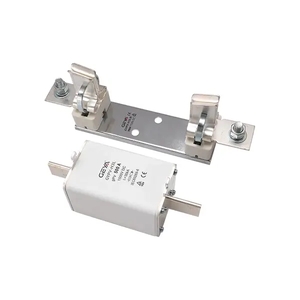

GYPV-H3L125-300 A1500 V DC

Technical Data

Class of operationgPV
StandardsGB/T 13539.6, IEC 60269-6
Breaking capacity50 kA
Time constant1-3 ms

Application

The fuses are used in photovoltaic DC circuits to interrupt fault current and protect PV modules, strings and related DC equipment.
