The GYMP7 series motor protection circuit breaker is used for direct starting, control, and protection of three-phase asynchronous motors. It integrates isolating switch, circuit breaker, and thermal relay functions in one protection device for motor and distribution-line applications.
Product Features
- Protection functions include overload, short-circuit, phase-loss protection, temperature compensation, and isolation protection.
- Rated insulation voltage 690V and rated impulse withstand voltage 6kV according to product data.
- Rated frequency 50/60Hz.
- Rated operating voltage options include 230/240V, 400/415V, 440V, 500V, and 690V.
- Frame rated current options include 32A and 80A; GYMP7-80 covers 25A, 40A, 63A, and 80A current options.
Covered Models
| Model | Type |
|---|
| GYMP7-32P | Motor protection circuit breaker |

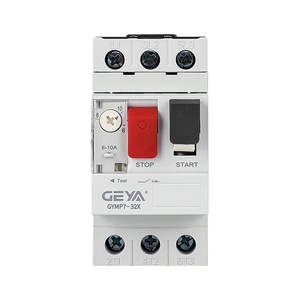

| GYMP7-32X | Three phase motor protection circuit breaker |

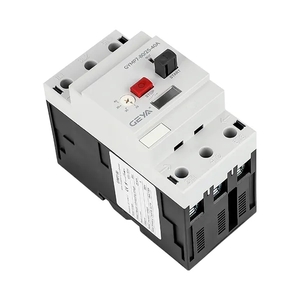

| GYMP7-80 | 80A frame MPCB breaker |
