GYMC mute modular contactors are DIN rail control devices for AC 50/60Hz circuits. They are intended for switching and controlling loads such as lighting, heating, ventilation, pumps and similar building or charging-station auxiliary circuits. The series is designed for quiet operation, compact panel installation and rated current options up to 63A.
| Code section | Meaning |
|---|---|
| GYMC | Mute modular contactor series |
| Current rating | Nominal current, such as 16A, 20A, 25A, 32A, 40A or 63A |
| Contact arrangement | Two digits showing normally open and normally closed contacts |
| Coil voltage | Control coil voltage, such as 230V AC |
Example: GYMC-25/20 230V indicates a 25A contactor with 2 normally open contacts and a 230V AC coil voltage.
| Code | Contact form |
|---|---|
| /10 | 1 normally open contact |
| /01 | 1 normally closed contact |
| /20 | 2 normally open contacts |
| /11 | 1 normally open + 1 normally closed contact |
| /02 | 2 normally closed contacts |
| /30 | 3 normally open contacts |
| /03 | 3 normally closed contacts |
| /40 | 4 normally open contacts |
| /04 | 4 normally closed contacts |
| /22 | 2 normally open + 2 normally closed contacts |
| /31 | 3 normally open + 1 normally closed contact |
| Model group | Poles | Width | Depth | Height | Front projection |
|---|---|---|---|---|---|

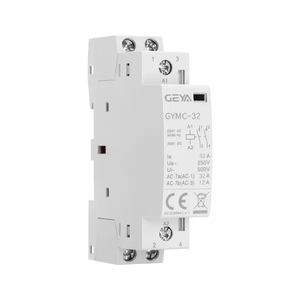

| GYMC-16/20/25/32 | 1P/2P | 18±0.2 mm | 68±0.4 mm | 85.5±0.5 / 81.5±0.5 mm | 45±0.3 mm |

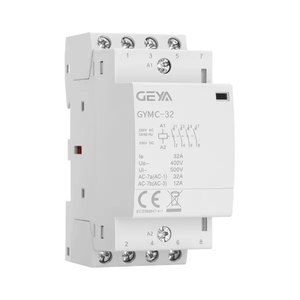

| GYMC-16/20/25/32 | 3P/4P | 36±0.4 mm | 68±0.4 mm | 85.5±0.5 / 81.5±0.5 mm | 45±0.3 mm |

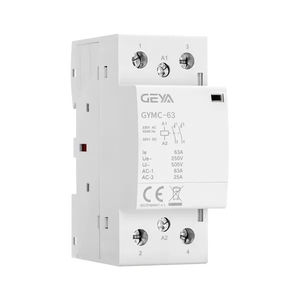

| GYMC-40/63 | 1P/2P | 36±0.4 mm | 68±0.4 mm | 90±0.5 / 85.5±0.5 mm | 45±0.3 mm |

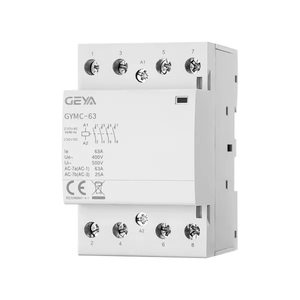

| GYMC-40/63 | 3P/4P | 54±0.8 mm | 68±0.4 mm | 90±0.5 / 85.5±0.5 mm | 45±0.3 mm |
| GYMC-AUC auxiliary contact | Accessory | 9±0.2 mm | 66±0.5 mm | 81±0.5 mm | 45±0.3 mm |
GYMC-AUC auxiliary contacts are used to indicate the contactor status, such as OFF or ON, when an auxiliary indication contact is required in the control circuit.
