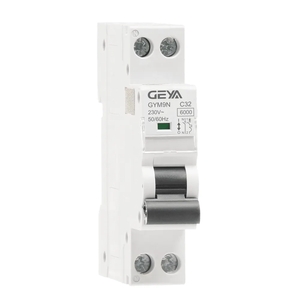

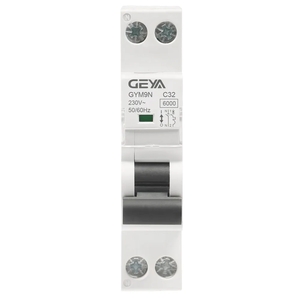

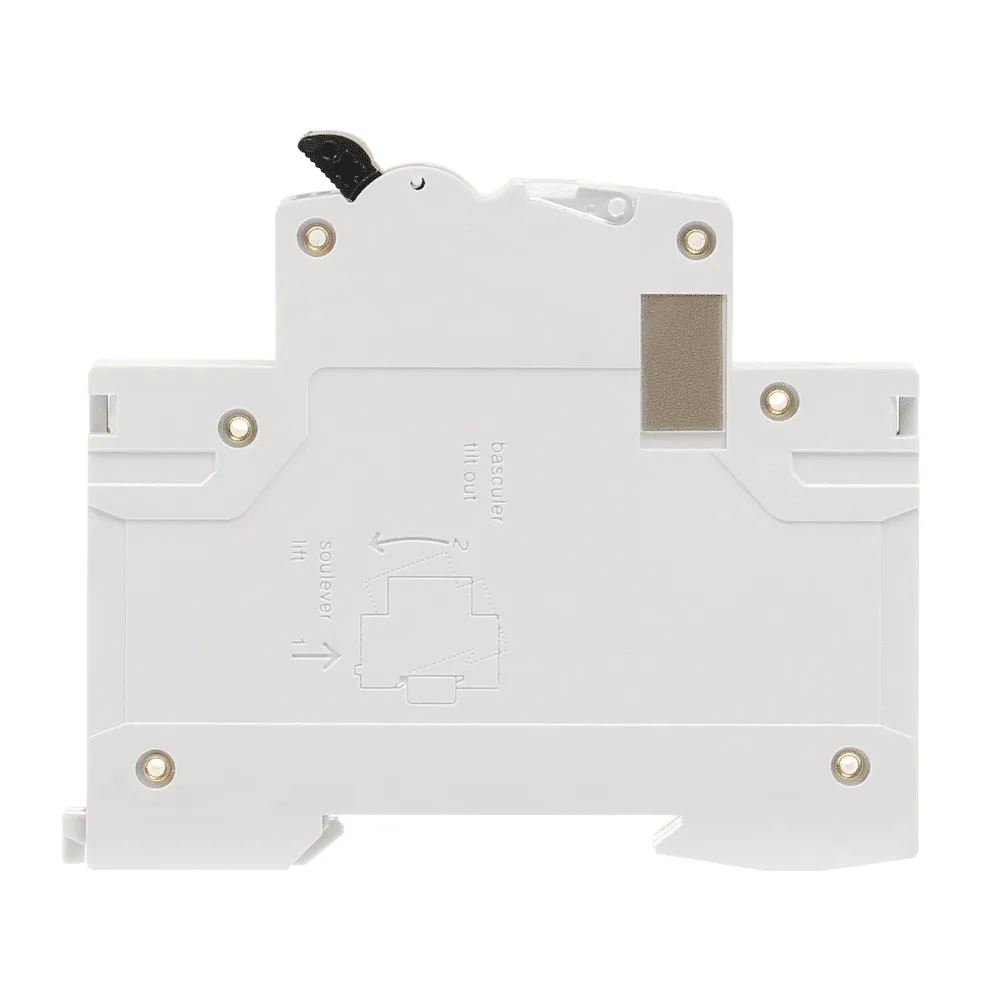

GYM9N 1P+N Miniature Circuit Breaker


Description

The GYM9N miniature circuit breaker is a 1P+N protection device for AC 50/60 Hz circuits. It is used for overload and short-circuit protection, and can also provide infrequent switching in industrial, commercial, high-rise, and residential distribution circuits.

Features

  • 1P+N compact structure.
  • Short-circuit and overload protection.
  • Thermal-magnetic trip method.
  • DIN rail installation for terminal distribution boards.

Technical Parameters

StandardIEC 60898-1, GB 10963.1
Poles1P+N
Rated current6-40 A
Rated voltage240 V AC
Rated insulation voltage400 V
Rated frequency50/60 Hz
Dielectric test voltage2000 V, 1 minute
Mechanical life10000 operations
Electrical life4000 operations
Protection classIP20; IP40 when installed in distribution box
