GYM8 Miniature Circuit Breaker

GYM8 Miniature Circuit Breaker Front View

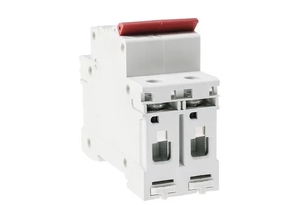

GYM8 Miniature Circuit Breaker Side View

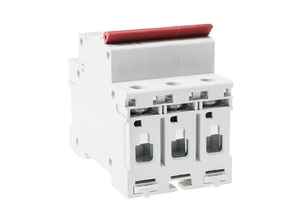

GYM8 Miniature Circuit Breaker Rear View
GYM8 Miniature Circuit Breaker Detail

Description

The GYM8 miniature circuit breaker provides overload and short-circuit protection in AC distribution circuits. Available versions cover 1A-63A ratings for terminal distribution applications, with the 1P 10A version used as an example.

Features

  • Short-circuit and overload protection.
  • DIN rail installation.
  • Contact status indication.
  • Designed for distribution boxes and terminal circuits.

Technical Parameters

StandardIEC 60898-1, GB 10963.1
Rated current1-63 A
Rated voltage240/415 V AC
Rated insulation voltage500 V
Rated frequency50/60 Hz
Breaking capacity4.5 kA
Reference temperature30°C
Protection classIP20; IP40 when installed in distribution box
Dimensions17.6 x 82 x 73 mm for 1P example

Certifications

The available certification files include CE and RoHS materials for the GYM8 series.
